What are the machines used in road marking？
Definition
Road marking machine is a kind of device specially used to delineate diverse traffic lines on blacktop or concrete surface in order to offer guidance and information to motorists and pedestrians. Regulation for parking and stopping can also be indicated by the traffic lanes. Road marking equipment is designed to make fast work of intersections, crosswalks, road lines and reflective road markings.
Road marking machines are specialized vehicles or equipment designed for the precise application of markings on road surfaces. These markings include lines, symbols, and patterns that guide traffic, enhance safety, and organize roadways. Road marking machines come in various types, such as paint stripes, thermoplastic applicators, and automatic driving type road marking machine. They are equipped with features like adjustable line width, reflective paint application, and efficient material delivery systems. These machines play a pivotal role in ensuring clear and well-defined road markings that contribute to traffic management, safety, compliance with regulations, and the overall aesthetic appeal of road networks.
As a professional road marking machine manufacturer, we recognize the significance of this specialized equipment in creating clear and visible markings on roads, pavements, and other surfaces. Our road marking machine for sale at reasonable prices across the world, including thermoplastic road marking machine for sale Philippine, self propelled road marking machine sale Malaysia. Welcome to enquire freely.
Road Marking Machine Types
1. Thermoplastic Road Marking Machine

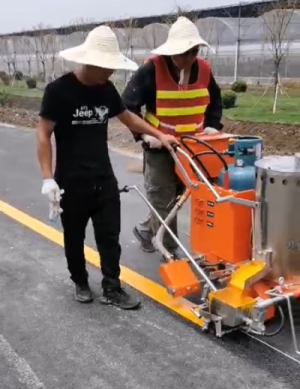

Thermoplastic flat line road marking machine
Definition
Thermoplastic flat line road marking machine is an equipment take advantage of heated thermoplastic paint in fluid condition to apply flat road marking on road surfaces. The flat lines are usually applied used to mark longitudinal markings. Longitudinal markings are provided for separating traffic flow in the same direction and the predominant color used is white. Yellow color is used to separate the traffic flow in opposite direction and also to separate the pavement edges. The lines can be either broken, solid or double solid.
ES-1 Thermoplastic flat line road marking machine can be also called walk behind, hand-push road marking machine, road marking applicator. It is suitable for city road, highway, motorway, zebra crossing, parking lots road marking project use.
Specification
Model | ES1 |
Dimension | 1320*850*1000mm |
Machine Weight | 135kgs |
Paint Tank Capacity | 100kgs |
Marking Width | 50mm, 80mm, 100mm, 120mm, 150mm, 200mm, 300mm, 400mm, 450mm, 500mm |
Marking Thickness | 1.0-3.0mm |
Marking Speed | 1.5km/h |
Heating Temperature | 180-210°C |
Heating Method | Liquefied Gas |
Applicable Liquefied Gas Tank | 15kg |
1.Road Marking Hopper and Glass Beads Sizes
1)Optional Screed Marking Hopper/Dies Size: Machine comes with one road marking shoe choosen from 10-20 cm. 5-50cm marking dies are optional. Other special sizes can also be customized.
2) Glass Beads Dispenser Size: Machine comes with one glass beads dispenser choosen from 10-20 cm. 5-50cm glass beads dispenser are optional. Other special sizes can also be customized.
2. Road Marking Hopper and Glass Beads Materials
1) High-precision Marking Hopper: made of ductile iron material, more heat-resistant and wear-resistant compared to gray cast iron (used by other suppliers). Less likely to deform or leak paint after long-term use.
2) Floor Edge Knife: made of imported alloy material, more wear-resistant and durable.
3) Rear Knife/Blade Plate: made of 40-chromium, more heat-resistant, not easy to deform and no leakage of paint.
4) More reasonable structure design
① Flexible Edge Knife: adjustable according to the angle of road undulating, to ensure pretty lines, neat edge, uniform thickness.
② Front and Rear Heating System: adjustable firepower according to the temperature of air and coating, to ensure the best state of coating for construction.
5) 24-hour oil precision testing before delivery to ensure no leakage of paint.
3. Glass Beads Dispensers
1) Optional dispenser types (Hand-operated or Self-dropping Dispenser) to easily control the distributing quantity.
2) Glass beads dispensers work only when the hopper drops to the ground and meanwhile move forward. No glass beads are wasted.
3) One dispenser size for three different widths. Money saving.
4. Other Details
1) The unerring locator ensures the equipment walk straight.
2) Natural rubber wheels are wear and heat resistant.
Thermoplastic convex line road marking machine
Definition
Thermoplastic convex line road marking machine is an equipment take advantage of heated convex thermoplastic paint in fluid condition to apply convex road marking, raised road marking, vibration lines, profile lines on road surfaces. Through their unique shape, they are designed to remind drivers to follow the lane and slow down at the right time, thus preventing accidents caused by fatigue and strongly improving road safety. It has a good warning and reminding effect on the driver,
ES-3 Self propelled convex thermoplastic road marking machine is used for marking convex lines. Convex lines are acting as the warning for drivers to lower the speed in special zones. It is mainly used in highways, tunnels, expressway toll booths and some places use it as the speed bump function as well.
The raised vibration road marking machine adopts Siemens programmable microcomputer control technology to realize human-computer dialogue, plug-and-play text display, easy adjustment, and transmits the signal to the Siemens microcomputer based on the accuracy of the signal transmitted by the Japanese OMRON sensor, and then issues instructions to the cylinder through the computer to work, so that one machine can complete the construction of the raised type and basic road marking at one time; and it is equipped with a stepless speed-changing walking system that can move forward and backward freely, which greatly improves the construction efficiency and ensures that the raised shape, height, and spacing of the marking line are accurate and precise; the Italian CAMOZZI cylinder and solenoid valve ensure long-term operation under high temperature conditions, which can fully meet the construction of various road conditions. The equipment is easy to operate and has high construction efficiency.
Specification
Model | ES3 |
Dimension | 1360*900*1100mm |
Machine Weight | 265kgs |
Paint Tank Capacity | 120kgs |
Marking Width | 150mm, 200mm, 300mm |
Convex Height | 0-10mm |
Marking Speed | 500-800m/h |
Heating Temperature | 180-210°C |
Heating Method | Liquefied Gas |
Applicable Liquefied Gas Tank | 15kg/20kgs |
Gasoline Engine | Japan Honda 5.5HP Gasoline Engine /USA Briggs&Stratton 5.5HP Gasoline Engine |
1.Road Marking Hopper and Glass Beads Sizes
1）Optional Screed Marking Hopper/Dies Size: Machine comes with one standard road marking shoe in size of 15cm. 20cm, 30cm marking dies are optional. Other special sizes can also be customized.
2) Glass Beads Dispenser Size: Machine comes with one standard glass beads dispenser in size of 15cm. 20cm, 30cm glass beads dispenser are optional. Other special sizes can also be customized.
2. Road Marking Hopper and Glass Beads Materials
1) High-precision Marking Hopper: made of ductile iron material, more heat-resistant and wear-resistant compared to gray cast iron (used by other suppliers). Less likely to deform or leak paint after long-term use.
2) Floor Edge Knife: made of imported alloy material, more wear-resistant and durable.
3) Rear Knife/Blade Plate: made of 40-chromium, more heat-resistant, not easy to deform and no leakage of paint.
4) More reasonable structure design
① Flexible Edge Knife: adjustable according to the angle of road undulating, to ensure pretty lines, neat edge, uniform thickness.
② Front and Rear Heating System: adjustable firepower according to the temperature of air and coating, to ensure the best state of coating for construction.
5) 24-hour oil precision testing before delivery to ensure no leakage of paint.
3. Glass Beads Dispensers
1) Optional dispenser types (Hand-operated or Self-dropping Dispenser) to easily control the distributing quantity.
2) Glass beads dispensers work only when the hopper drops to the ground and meanwhile move forward. No glass beads are wasted.
3) One dispenser size for three different widths. Money saving.
4. Other Details
1) The unerring locator ensures the equipment walk straight.
2) Natural rubber wheels are wear and heat resistant.
5. Vibration Road Line Marking Machine has the following functions:
1) Adopt automatic oil pressure stepless speed change driving mode, automatic walking, to ensure uniform and efficient construction effect;
2) The scriber adopts stainless steel insulating material coatings barrel and inserting manual mixing device to ensure the best temperature and shape of the melt.
3) Unique marking hopper, which makes the shape, spacing and height of marking protrusion precise and accurate, makes the marking of hot melt oscillation complete at one time, and has strong wear resistance and impact resistance.
4) Synchronized clutch glass bead sprayer makes the glass beads more evenly scattered on the marking line.
5) It is equipped with speed regulating gear shifting device and rear wheel positioning system to ensure that the equipment is fixed and straight ahead.
2. Airless Spray Cold Paint Road Marking Machine
Definition
Airless spray painting cold paint machine is a painting technique in which a device sprays coating normal temperature paint material：solvent borne road marking paint, waterborne road marking paint, oil-based road marking paint, ordinary paint, wall latex paint, interior and exterior latex paint, acrylic paint and barreled liquid paint-road marking paint through the air onto a surface. It is the spray equipment with high pressure equal discharge and airless.
which can generate high pressure inside the machine.
It uses gasoline engine to drive single plunger pump to work. The plunger pump relies on the reciprocating movement of the plunger in the cylinder to change the volume of the sealed working chamber to realize oil suction and pressure. Equipped with the computer line controller, the space between broken lines can be changed according to the project requirements.
It is suitable for roads, highway, parking lot, airport, station. It can mark a straight line, dotted line, curve, zebra crossing, arrows, etc.
ES-12A Airless spray cold paint road marking machine can be used for road, street, highway, parking lot, factory, driving schools, playgrounds, highways and airport road markings. It equips with imported Dakin plunger pump. It has stable performance and high working efficiency. The maximum flow rate is up to 12L/min.
Specification
Model | ES12A |
Dimension | 1580*850*1050mm |
Weight | 115kgs |
Marking Width | 50-600mm（Adjustable） |
Marking Thickness | 0.2-0.4mm（Adjustable） |
Material Consumption | 0.25kg/m² |
Spraying Flow | 12L/min |
Marking Speed | 2-3KM/Hour |
Gasoline Engine | Honda GX200, 6.5HP |
Paint Pump | Dakin Plunger Pump |
Injection Pump and Control Method | Automatic Reciprocating Plunger |
Line Marking Method | High Pressure Airless Spray |
Working Pressure | 10-20Mpa(1000-2000 Bar) |
Stabilized Pressure Pipe Length | 15m |
Hydraulic Oil Tank | 16L Aluminum radiator hydraulic oil tank |
Spray Gun | Imported Stainless Steel Double Spray Guns |
Guide Indicator | Laser Ten Ruler |
LED Flashing Light | 60W |
Optional Configurations | Glass Beads Dispenser |
Product explanation:
The hand-push cold spray road marking machine is a special equipment for road marking at room temperature. No need to heat the paint directly for spraying. The marking thickness is 0.2-0.4mm, and the material consumption is about 0.25kg/m²
Product principle:
The machine adopts Honda gasoline engine which drives hydraulic plunger pump to make reciprocating movement with the high pressure, which can spray the cold paint with high flow rate and high efficiency.
Product configuration:
It uses imported Dakin hydraulic piston pump with automatic reciprocating plunger; Honda gasoline engine GX200, 6.5HP; imported stainless steel spray gun, spraying evenly without burrs; 12L/min flow rate; 15m stabilized pressure pipe;
laser ten ruler guide indicator; 60W LED flashing light.
Product use:
Suitable for various straight lines, dotted lines, induction lines, zebra crossings, text, graphics, etc. in highways, urban areas, squares, parking lots, airports, etc.
Types of marking lines:
Stadium markings, runway markings, road markings, parking space markings, workshop markings, park markings, airport markings
Usage scenarios:
Road, street, highway, ground parking lot, underground parking lot, playground, stadium, football field, gas station, community
Types of paint available:
Barreled liquid paint-road marking paint, oil-based paint, solvent-based paint, water-based paint, ordinary paint, wall latex paint, interior and exterior latex paint, acrylic paint
Product advantages:
- Imported stainless steel spray gun
- Imported DAKIN hydraulic piston pump
- Precise line adjustment, smooth material discharge, not picky about paint, one machine with multiple uses and easy steering
3. Two-component Road Marking Machine
Thermoplastic two-component road marking machine
Definition
Thermoplastic two-component road marking machine has two container for paint tank A and paint tank B, which can be mixed together by stirring device the stirring device can stir automatically, which supported by mobile power. The two component thermoplastic screeding road marking paint and two component structural road marking paint are alternative for the two component thermoplastic road marking machine. The two-component coating has good visibility at night, abrasion resistance and stain resistance.
Specification
Thermoplastic Two Component Raised Convex Line，Screeding Flat Line, Agglomerate Line Road Marking Machine | |
Convex Line Technical Parameter | |
Engine | Honda gasoline engine, OHV4 stroke air-cooled, 5.5HP power |
Walking drive mode | Automatic hydraulic stepless speed change |
Working speed | 10-15m/min |
Maximum climbing angle | 15° |
Line thickness | Flat line: 0-3.5mm, convex line: 6.5mm height(0-10mm adjustable) |
Protrusion length | Any length is controlled by CPU intelligent program |
Hopper | Manual opening and closing, pneumatic forming |
Paint tank | Capacity 60kg*2 |
Double glass beads dispenser | Automatic synchronous clutch spreading Capacity 25kg*2 |
Rubber wheel | Iron wheels, specially made of heat-resistant rubber, and a positioner on the rear wheel to keep the vehicle moving in a straight line |
Marking width | Available in 150/200/300/400/450mm (customizable) |
Dimension | Length 1300*width 1000*height 1170mm (excluding pointer) |
Net weight | 296kg |
Main configurations: ① Travel drive-Eaton, USA ② Solenoid valve-Taiwan Ulike ③ Air compressor-Taiwan Jaguar ④ Controller – customized domestically produced ⑤ Cylinder- Taiwan Ulike | |
| |
Screeding Flat Line Technical Parameter | |
Engine | Honda gasoline engine, OHV4 stroke air-cooled, 5.5HP power |
Walking drive mode | Automatic hydraulic stepless speed change |
Working speed | 10-15m/min |
Maximum climbing angle | 15° |
Line thickness | Flat line: 0-3.5mm |
Hopper | Manual opening and closing, pneumatic forming |
Paint tank | Capacity 60kg*2 |
Double glass beads dispenser | Automatic synchronous clutch spreading Capacity 25kg*2 |
Thermoplastic two component road marking machine is suitable for city road, mountain road, highway, parking lot, airport, station road marking project. It can mark a flat line, agglomerate line, convex lines etc.
Airless spray two-component road marking machine
Definition
Airless spray two component cold paint road marking machine is a painting technique in which a device adopts the principle of double pump ternal mixing sprays coating normal temperature paint material：two component airless spraying cold road marking paint- through the air onto a surface.
Two-component solvent-free spraying road marking paint is composed of methyl methacrylate, special functionality of acrylic ester, plasticizing acrylic ester and etc. Its curing velocity is quick, the application performance is excellent. Since application, the development speed of two-component spraying road marking paint has been extremely swift and violent, and the application domain has been expanded unceasingly, which is known as the third “road marking revolution” Its presence has solved the problems that the cold lines are weak in wear resistance, the thermoplastic lines are easy to be stained and of poor reflective effect.
Specification
Engine | Gasoline engine, Honda 6.5HP power |
Pump | Hydraulic plunger pump |
Driving system | Single gun 0.039; double guns 0.031 |
Working pressure | 3300PSI |
Working flow | 15L/min |
Line thickness | 1mm（adjustable） 1kg/m² |
Oil tank | 3.6L |
Glass beads tank | Capacity 20kgs |
Glass beads dispenser system | Air pressure spraying, using imported oil-free air compressor, glass bead spray gun |
Working efficiency | 2-3km/h |
Dimension | Length 1800*width 820*height 1150mm (excluding pointer) |
Weight | 180kgs |
Features：
- Advanced shock mitigation system
- Lightweight fixed device of nozzle
- Imported nozzle
- Continuous cooling system
- A component B component Static mixing device
- Automatic quick cleaning device
4. Automatic Driving Type Road Marking Machine
Automatic driving type thermoplastic screeding flat line, convex line road marking machine
Definition
Driving-type thermoplastic screeding road marking machine is suitable for marking highway, urban road and local road with large construction square. Type I: pneumatic screeding flat line marking shoe. Type II: pneumatic screeding flat or convex line marking shoe.
Specification
Driving type thermoplastic flat line road marking machine | |
Engine | 35 KW diesel engine
|
Air compressor | 0.6 m3/min |
Heating Mode | Liquefied petroleum gas, infrared burner, automatic temperature control
|
Paint tank capacity | 250 L pressure tank |
Glass beads bin | 120 L |
Marking equipment | Pneumatic flat line marking shoe |
Standard configuration | 150 mm
|
Marking width
| 100 mm, 200 mm, 250 mm, 300 mm (optional) |
Marking thickness | 1.8 mm – 3.5 mm (adjustable) |
Control system | Digital intelligent control system |
Dimensions (L*W*H) | 4100 mm × 1900 mm × 2100 mm |
Weight | 2260 kg |
Optional system | Guide warning screen, pre-marking system, and trailer |
|
|
Driving type thermoplastic convex line road marking machine |
|
Engine | 35 KW diesel engine
|
Air compressor | 0.6 m3/min |
Heating Mode | Liquefied petroleum gas, infrared burner, automatic temperature control
|
Paint tank capacity | 250 L pressure tank |
Glass beads bin | 120 L |
Marking equipment | Pneumatic flat or convex line marking shoe |
Standard configuration | 150 mm
|
Marking width
| 100 mm, 200 mm, 250 mm, 300 mm (optional) |
Marking thickness | Bottom line 1.0 mm – 2.5 mm (adjustable) Convex height 3 mm – 7 mm (adjustable)
|
Control system | Digital intelligent control system |
Dimensions (L*W*H) | 4100 mm × 1900 mm × 2100 mm |
Weight | 2260 kg |
Optional system | Guide warning screen, pre-marking system, and trailer |
Features
- Advanced hydraulic drive with infinitely variable speed control system, control and adjust speed more accurately.
- Drive optimization design can control the machine more efficiently and safe in case of emergency.
- Larger capacity pressurized paint tank and glass bead bin, keep the continuity of long-distance marking job.
- Conduction oil and internal vertical hydraulic agitator ensures efficiently and evenly heating.
- Screeding structure makes the markings more straight and beautiful.
- Infrared furnace, save fuels more than 50%, 3 times thermal efficiency than normal furnace.
- Sensitive, precise and stable computer control system, easier realizes all operations.
- All directions warning system, ensures more safe during construction.
Automatic driving type thermoplastic spraying road marking machine
Definition
Driving-type thermoplastic spraying road marking machine are low-pressure air spraying thermoplastic road marking machine with high efficiency and flexibility. It can serve long distance and continuous line marking work.
Working principle：driving-type thermoplastic spraying road marking machine is a driving type machine which equipped with atomized air-auxiliary spray gun with low pressure to spray the paint and glass beads.
The atomized gas’s heating oil recycle pump and heat exchanger in this system is able to improve the spray effect. Spray width can be freely adjusted.
Estraffic provides middle type of driving-type thermoplastic spraying road marking machine with different bin volume and spray width. They all adopt world-renowned brand components and own proprietary technology, and practice has proven that the machine has steady and reliable performance.
Specification
Automatic driving type spraying road marking machine | |
Engine | 37 kW diesel engine |
Air compressor | 3 m3/min, screw type |
Heating Mode | Liquefied petroleum gas, conducting oil heating, automatic temperature control |
Paint tank capacity | 250 L pressure tank |
Glass beads bin | 120 L |
Marking equipment | Equipped with single air spray guns |
Marking width | 100 mm – 250 mm (adjustable) |
Marking thickness | 1.0 mm – 2.0 mm (adjustable) |
Control system | Digital intelligent control system |
Dimensions (L*W*H) | 4100 mm × 1900 mm × 2100 mm |
Weight | 2800 kg |
Optional system | Guide warning screen, pre-marking system, and trailer |
Features
- Sensitive, precise and stable micro-electronic control system, can realized diverse operational functions easily.
- Advanced hydraulic drive with infinitely variable speed control system, more precise speed control and adjustment.
- Drive optimization design can control the machine more efficiently and safe in case of emergency.
- Large capacity pressurized paint tank and glass bead bin, keep the continuity of long-distance marking job.
- Conduction oil and internal vertical hydraulic agitator ensures efficiently and evenly heating.
- Adjustable single pneumatic atomizing spray gun, marking width and thickness can be adjusted flexibly according to individual requirements.
- Infrared furnace, save fuels more than 50%, 3 times thermal efficiency than normal furnace.
- Sensitive, precise and stable computer control system, easier realizes all operations.
- Omnibearing warning system, more safe during construction.
Automatic driving type thermoplastic extrusion road marking machine
Definition
Driving type multi-functional thermoplastic road marking machine is practical and multifunctional equipment, it has a high level of automation, high safety coefficient, it can help reduce labour intensity, improve the efficiency of construction.
According to customers’ requirements, the machine can be applied to Hot melt spraying, Hot melt extrusion, hot melt vibrating and hot-melt scraping etc. by just replace some parts.
Specification
Engine | Gasoline Engine Honda GX270（LPG） |
Heat method | LPG |
Vehicle Control System | CPU computer board imported from Siemens |
Work pattern | Dual mode（flat line and rib line） |
Driving system | LPG power，hydraulic drive，infinitely variable speeds |
Compressor | Imported air compressor |
Working pressure | Pressure of blast pump: 0.4—0.6kg |
Paint tank capacity
| 0.1413m³（can accommodate about 225kg paint） |
Beads box capacity | 20kg |
Working speed | 0—15km/h |
Rib line height | 0-10mm |
Line width | 50-450mm(optional) |
Vehicle wheel | 2 front wheel and 2rear-wheel，Duralon material，15×6.00—6NHS |
Lamp
| LED Lighting lamp，caution light，turn light，control panel display lamp |
Heating Mode
| Liquefied petroleum gas heating |
Pointer length | 2m（extension-type） |
Size and weight
| 1900mm×1220mm×1300mm（not include pointer） |
Weight | 570kg |
Features
- Fast construction speed and high efficiency
- Belonging to larger construction equipment, reducing casualties caused by traffic accidents during the construction process
- Long maintenance free cycle, durable and long-lasting
- Extrusion construction process, precise control of coating dosage, avoiding unnecessary consumption
- User friendly and easy to use (cruise control, computer system, etc.)
- The operation and construction methods are quickly converted, and the marking equipment can be installed from one side to the other in half an hour
- Minimal maintenance (high-quality components), and easy and convenient maintenance
- Customizable marking equipment according to customer needs
Automatic airless spray cold paint road marking machine
Definition
Driving-type cold paint airless road marking machine. The width of road marking line can be adjustable according to customer’s request. Type I for cold solvent and water-based paint . Type II for cold solvent , water-based, two-component, two color paint.
Specification
Driving type airless spraying cold paint machine | ||
Model | Single tank | Double tank |
Engine | Kohler 18 HP or Honda 20 HP gasoline engine | |
Air compressor | 0.6 m3/min | |
Applied paint | Cold solvent paint, water-based paint | Cold solvent, water-based, two-component, two color paint |
Paint tank capacity | 170 L | 170 L × 2 |
Glass beads bin | 52 L | 52 L |
Paint pump | Single high-pressure airless plunger pumps | Double high-pressure airless plunger pumps |
Spray gun | Double pneumatic spraying guns, single manual spraying gun | |
Marking width | 50 mm – 1000 mm (adjustable) | |
Control system | Digital intelligent control system | |
Dimensions (L*W*H) | 2900 mm × 1600 mm × 2400 mm | |
Weight | 682 kg | |
Optional system | Guide warning screen, pre-marking system, trailer, swing type, screeding type and two-component type | |
Features
- Advanced hydraulic drive CVT system, adjust and control speed accurately.
- Driving optimal design can control the machine effectively and ensure safety in an emergency.
- High capacity double room paint tank and glass beads tank can ensure long distance and continuous road marking.
- New type high pressure airless piston pump, stable pressure and high flow can ensure high efficiency and high quality road marking.
- The width of road marking line can be adjustable according to customer’s request.
- Automatic paint stirring system can ensure stir equably, and improve the performance of paint effectively, and improve the durability of road marking line.
- Long wheel tread can ensure road marking line more straight, and reduce the effect of human factors, and improve the quality of road marking line obviously.
- Sensitive, precise and stable microelectronic control system can be operated easily.
- All-around warning system ensure safety during construction.
- Optional system include pre-marking, trailer, swing type, screeding type, and two component type.
Road Marking Auxiliary Equipments
1. Road marking driver booster seat machine
Definition
Road marking driver booster seat machine is equipped with gasoline engine as power. It is mainly connected using with the ES1 hand push thermoplastic road marking machine, and ES12 spraying cold paint machine and other hand push machines. It can enhance working efficiency largely. And the climbing angle is up to 30°.
Specification
Road marking driver Seat Booster | |
Engine | Briggs & Stratton, XR750 |
Power | 5.5HP |
Working Speed | 16km/h |
Functions | Can connected using with hand push thermoplastic road marking machine, cold paint machine |
Climbing Angle | ≤30° |
Light | LED Flashing Light |
Dimension | 1500*1200*700mm |
Weight | 80kgs |
Features:
- Equipped with an imported hydraulic stepless transmission system (HTS), which can precisely control and adjust the walking speed.
- The split driving sheel is more conducive to driving and steering on curves. closed hydraulic system, reduce the equipment pollution rate and failure rate.
- Directional adjustable lighting increases the convenience, safety and comfort of night work.
- Safe parking brake system can effectively guarantee safety when the equipment is stopped or during transportation.
- According to the needs, it can be linked with any hand-push marking equipment to greatly reduce the labor intensity of the operator and significantly improve the marking efficiency.
2. Road marking removal machine
Small size hand push road marking paint removal machine
Definition
Road Marking Paint Remover Machine is used to remove and clean the waste old lines before thermoplastic paint remarking. The motor drives the grinding head to revolving quickly. The grinding head eliminates the convex surface area under the impact of centrifugal force, and clears the marking lines. The equipment contains the capabilities of excellent removal effect, rapid removal speed and very simple operation and maintenance.
Specification
Road Marking Removal Machine | ||
Size | 590*460*1050mm | |
Net Weight | 66kgs | |
Gasoline Engine | Honda GX160 | Loncin 196cc |
Engine Power | 5.5HP | 5HP |
Cutting Blade Quantity | 76pcs | |
Cutting Blade Type | Five-star tungsten steel alloy | |
Cutting Width | 200mm | |
Cutting Depth | 1-3mm | |
Package Size | 590*460*1050mm | |
Starting Mode | Manual | |
Road Marking Removal Way | Rolling Blade | |
Spindles Numbers | 6pcs | |
Applicable Removal Line Type | Cold Spraying Lines/Thermoplastic Road Marking Line | |
Applicable Road Surfaces | Concrete/Cement/Asphalt Road Surfaces | |
Features
- The convenient mechanical road marking removal machine;
- Low failure rate, high efficiency, no need to replace bearings, good pavement grinding effect, easy maintenance, etc；
- The cutter head mode of the machine is diverse, which can meet various road requirements.
Large size high pressure water blasting road marking paint removal machine
Definition
Large size high pressure water blasting road marking paint removal machine is used for removing all kinds of road marking lines with its high pressure water. It has advantages of easy operation, simple maintenance, high efficiency without damaging road surface, environment friendly.
Specification
Large size high pressure water blasting road marking paint removal machine | |
Recovery System Provided | Recovery Percent: over 95% |
Whole Dimension | 5750 x 2000 x 1800 mm |
Gross Weight | 3650 kg |
Engine Diesel Engine | Wechai & DEUTZ™ |
Engine Power | 120 kw |
Rev. Speed | 1500 rpm |
Working Pressure Max. | 140 mpa (1400 bar) |
Flow Max. | 30 L/min |
Blasting Head | Walk Behind Type |
Blasting Head Size | 1050 x 540 x 980 mm |
Blasting Head Weight | 52 kg |
Water Pipe Length | 12 meters |
Recovery Pipe Length | 12 meters |
Working Voltage | DC 24V |
Transmission Model | Belt Drive |
Jet Nozzels (No.) | 12 ~16 pcs |
Width of Removal | 180 ~ 250 mm |
Working Efficiency | 150 ~ 200 m2 / 8h |
Water Tank Capacity | 3.4 CBM |
Waste Tank Capacity | 3.4 CBM |
Working Truck Optional | 5.8 meter truck recommended |
Features
- The equipment main machine adopts foreign advanced high-pressure pump manufacturing technology, which is the most advanced equipment with upgrade and new design in domestic.
- The main machine has stable running performance and low noise. The performance of high-pressure pump components is good and durable, and the sealing components have long continuous working time.
- The equipment is with simple operation, high level of automation, and perfect cooling system design.
- The design of the line cleaning actuator is unique and fine manufacturing, the performance is excellent, and the comprehensive performance exceeds the foreign products of the same type. The costisonly 1/5 of the foreign products.
- According to the width of the marking line to be removed or the need of cleaning object, the actuator can be arbitrarily adjusted to achieve excellent removing effect and optimal work efficiency.
- The equipment cleaning accessories are fully equipped to meet the cleaning and working requirements under various conditions. It is a multifunctional and comprehensive maintenance cleaning equipment. It can be custom produced according to customers’ needs, fully meet the customer’s working environment requirement.
- Compulsive lubricating system and oil cooling system, Complete computer monitoring system, Water supply pipeline system: stainless steel and Withhold hose
- Imported safety bursting diaphragm, pressure regulating valve: imported from Japan, high pressure gauge: imported from Germany
3. Road surface blowing and sweeping combination machine
Definition
Road surface blowing and sweeping combination machine is the assistant facility for road marking project. It is used for cleaning the bleeding cement, mud, quick soil out from the road surface. It also can blow away the impurities and dust of road surface. It has advantages of improving working efficiency and save workforce.
Specification
Road Cleaning and Air Blower Machine | |
Size | 1000*560*870mm |
Net Weight | 98kgs |
Walking Mode | Hand Push |
Rated Oil Pressure | 10MPa |
Tension Piston Area | 10M2 |
Tension Pressure | 10KN |
Working Route | 141mm |
Puncture Distance | 44mm |
Nominal Ejection Rate | 11KN |
Nominal Oil Pressure | 10MPa |
Return Oil Pressure | 14MPa |
Steel Strand Reserved Length | 11mm |
Rated Flowing Rate | 12L/min |
Gasoline Engine | Honda GX160, 5.5HP |
Brush Material | High Wearing Resistance Steel Wire Brush |
Features
- It is used for cleaning the bleeding cement, mud, quick soil out from the road surface.
- It also can blow away the impurities and dust of road surface.
- It has advantages of improving working efficiency and save workforce.
4. Pre-marking Water Line Machine
Definition
Pre-marking Water Line Machine also called hand-push baseline marker machine whichis the assistant machine in road marking construction. It can mark the pre-marking freely according to the requirements of construction to avoid faulty marking. Also can accomplish 1-3 lines independently, which greatly improves the construction efficiency.
Specification
Pre-Marking Water Line Machine | |
Size | 1300*900*1000mm |
Net Weight | 128kgs |
Maximum Width | 9m |
Functions | It can mark the pre-marking freely according to the requirements of construction to avoid faulty marking. Also can accomplish 1-3 lines independently, which greatly improves the construction efficiency. |
Features
- Pre-marking water line machine is the assistant machine in road marking construction.
- It can mark the pre-marking freely according to the requirements of construction to avoid faulty marking.
- Also can accomplish 1-3 lines independently, which greatly improves the construction efficiency.
5. Primer Machine
Definition
Primer Machine is used for applying one layer of primer of the road surfaces, the intention is to bind the road surfaces and thermoplastic road marking lines strongly. The operation step is very simple.
Specification
Primer Machine | |
Dimension | 900*650*850mm |
Weight | 65kgs |
Power | Gear turning |
Spraying Width | 10-45cm |
Maximum Flow | 2L/min |
Maximum Pressure | 1.5Mpa |
Marking Speed | 65-70m/min |
Pump | Primer pump |
Spraying Gun Control | Brake handle control |
Safe Pressure Control | To keep the pressure stable, set a one-way ball valve |
Features
- Primer machine can increase the adhesive force between paint and road surface.
- Primer machine is assistant equipment for road marking construction.
- It is equipped with gasoline engine and automatic air compressor,
- It has the advantage of high-efficiency, labor saving, easy operation, simple maintenance and long service life.
Features of Road Marking Machine
1. Versatility:
Road marking machines come in various types, such as airless spray cold paint stripes, thermoplastic applicators, and even automated robotic systems, allowing for different types of road markings to be applied.
2. Precision Application:
These machines are designed to provide accurate and consistent application of road markings, ensuring clear and well-defined lines.
3. Adjustable Width and Thickness:
Many modern road marking machines allow for adjustable line width and thickness, accommodating different road types and regulations.
4. Efficiency:
Road marking machines are equipped with efficient paint or material delivery systems, minimizing downtime and enhancing productivity.
5. Reflective Markings:
Some machines are capable of applying reflective paint or beads, enhancing visibility during nighttime driving.
6. Ergonomic Design:
User-friendly controls and ergonomic designs make operating these machines easier for the operators, reducing fatigue during extended use.
Importance of Road Marking Machine
1. Safety:
Road markings play a crucial role in guiding drivers, pedestrians, and cyclists, ensuring safe and organized traffic flow.
2. Traffic Management:
Clear road markings help in managing traffic by indicating lanes, pedestrian crossings, stop lines, and other essential elements, reducing congestion and accidents.
3. Compliance:
Road markings are often mandated by traffic regulations and standards. Road marking machines enable authorities to maintain compliance with these regulations effectively.
4. Visibility:
Reflective road markings improve visibility during low-light conditions and bad weather, contributing to overall road safety.
5. Aesthetics:
Well-maintained road markings enhance the overall aesthetics of roads, contributing to the visual appeal of the surroundings.
6. Cost-Effectiveness:
Efficient road marking application reduces the need for frequent repainting, saving both time and money for maintenance.
These features and the importance of road marking machines emphasize their role in maintaining safe, organized, and visually pleasing road networks.
Summary
In conclusion, in light of different places and conditions road marking needs, estraffic manufacture and wholesale various types of road marking machines. We have popular road marking machines for sale in Malaysia, Philippine, Saudi Arabia, Qatar, South Africa, Nigeria, Kenya.
- Everstar Traffic Facility Company Limited
- +86 18851759784
- info@everstartraffic.com
- Qixia District, Nanjing, Jiangsu, China
- Everstar Traffic
- Everstar Traffic
- Everstar Traffic
- +86-18851759784
Links
Menu
