Description
Temperature controlled thermoplastic paint preheater can automatically and accurately ignite and stop the fire according to temperature intelligently. Combined with Italian imported burners which can achieve various operations such as automatic ignition, high-speed melting, automatic heating, and automatic ceasefire, greatly simplifying construction operations and reducing more labor costs. With the upgraded torque hydraulic motor for full stirring, a full tank of thermoplastic road marking paint melting time is 20 minutes which can improve the working efficiency of road marking project.
Technical Specification
|
ES-1200DF Liquefied Gas & Diesel
Oil Dual-Fuel Hydraulic Heating Kettle |
|||
|
Model
|
ES-1200DT |
ES-1500DT |
ES-2000DT |
|
Paint Tank Capacity |
2x600kgs |
2x750kgs |
2x1000kgs |
|
Diesel
Engine |
High power diesel engine |
High power diesel engine |
High power diesel engine |
|
Diesel Oil Tank Capacity |
170L |
170L |
170L |
|
Weight |
1.62T |
1.76T |
1.88T |
|
Size |
1750x1700x1650mm |
1950x1900x1650mm |
1950x1900x1850mm |
|
Rechargeable
Battery |
12V |
||
|
Battery Charging Mode |
High strength,
high temperature resistance, anti-oxidation, stainless steel plate structure |
||
|
Insulation
Device |
Built-in generator set |
||
|
Hydraulic Motor |
High torque
hydraulic motor |
||
|
Suggest
Mixing Temperature |
120-150℃ |
||
consectetur adipiscing elit. Ut elit tellus, luctus nec
Advantages

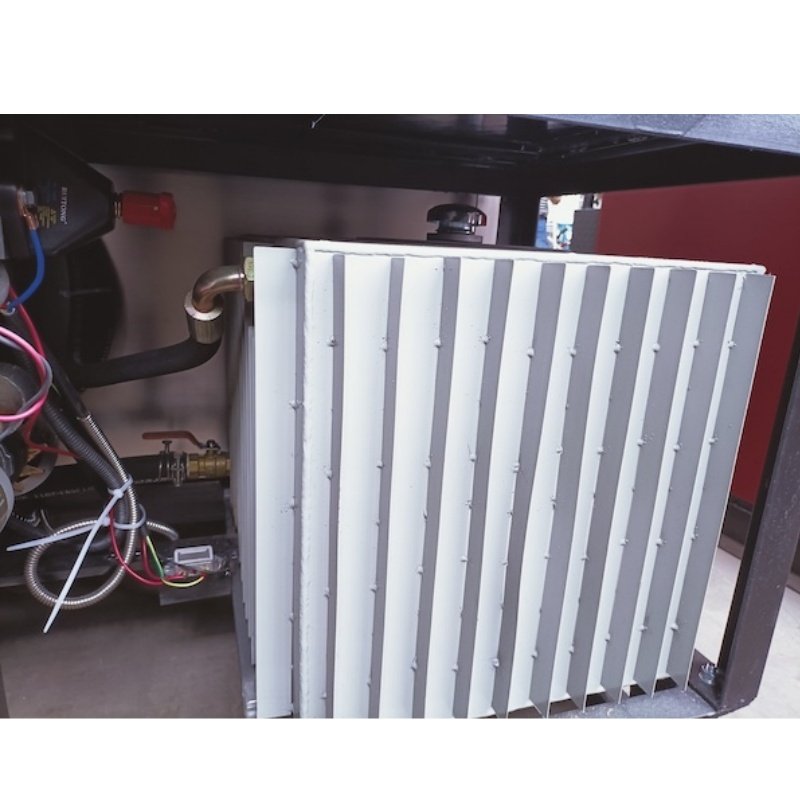

- Gas circulation insulation kettle body: Adopting a multi cycle gas circulation temperature locking structure, including gas circulation insulation structure, multiple physical temperature locking structure, thickened high-temperature resistant insulation cotton, and patented body insulation structure. Further accelerate the melting time of the coating, significantly reduce material temperature loss, and avoid wasting fuel by repeatedly heating and insulating.

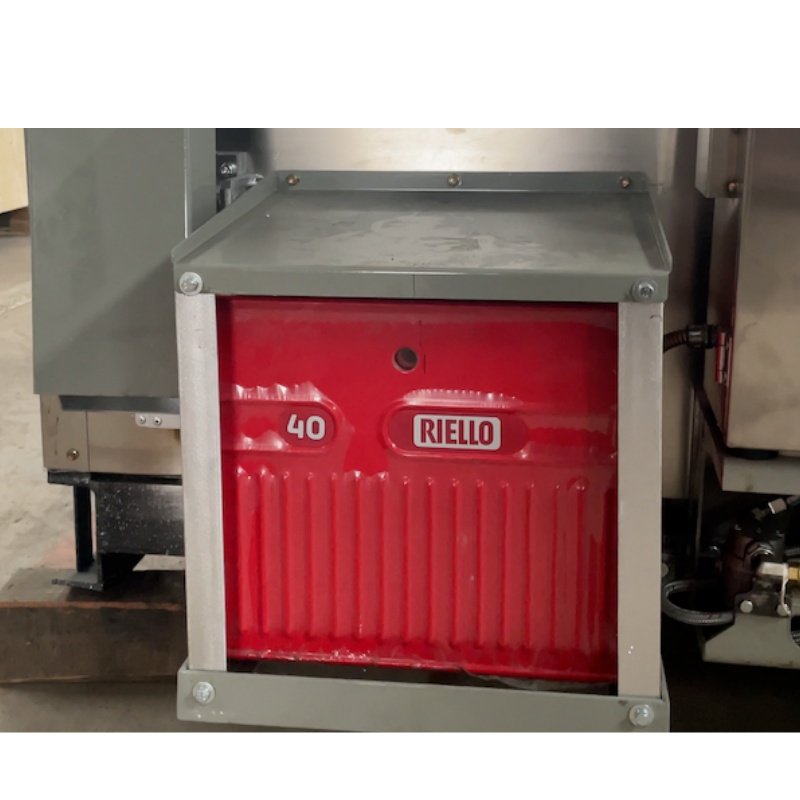

- Heating system: Imported burner from Italy, capable of automatic electronic ignition, using mechanical boosting system, no need for fan, good atomization effect, more complete combustion of jet flame, stable flame, no coking or blockage, and longer service life.

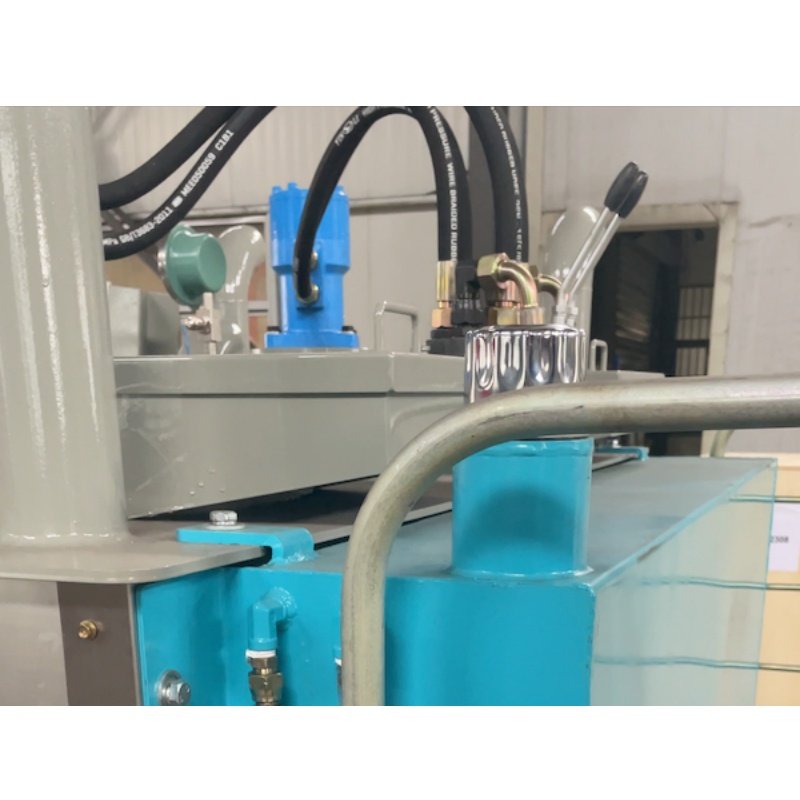

- Mixing system: Imported high torque hydraulic motors have characteristics such as low to medium speed and high torque during operation, which can effectively promote heat conduction and uniformly and efficiently melt coatings. The domestic first-line brand directional valve has an extremely low failure rate and achieves alternating positive and negative mixing operations, allowing the coating to be fully and evenly heated and avoiding insufficient melting.
- High precision temperature control system: The high-precision temperature control system can set the temperature according to the actual construction environment, with a temperature control accuracy of up to 99%. It perfectly achieves automatic stop fire when the temperature reaches, automatic ignition when the temperature drops, and avoids situations such as excessive heating, paint burning or fuel waste. It further improves the economy and simplicity of hot melt marking operation, and novice construction can also perfectly control the material temperature.
