Description

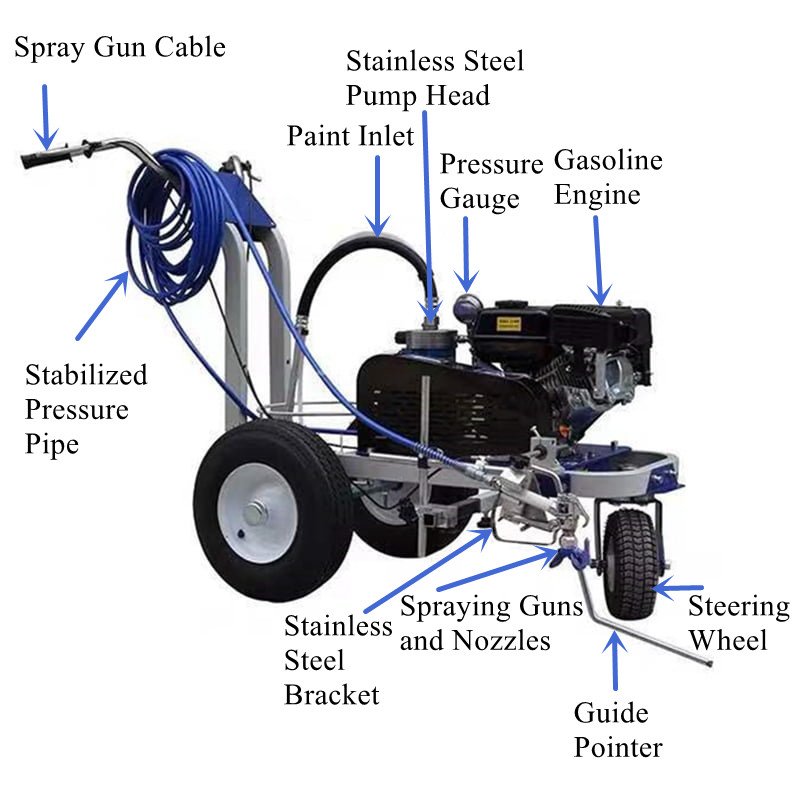

ES-10 Airless spray cold paint road marking machine can be used for road, street, highway, parking lot, factory, driving schools, playgrounds, highways and airport road markings. It equips with diaphgram pump. It has stable performance and high working efficiency. The maximum flow rate is up to 6.5L/min.
The hand-push cold spray road marking machine is a special equipment for road marking at room temperature. No need to heat the paint directly for spraying. The marking thickness is 0.2-0.4mm, and the material consumption is about 0.25kg/m²

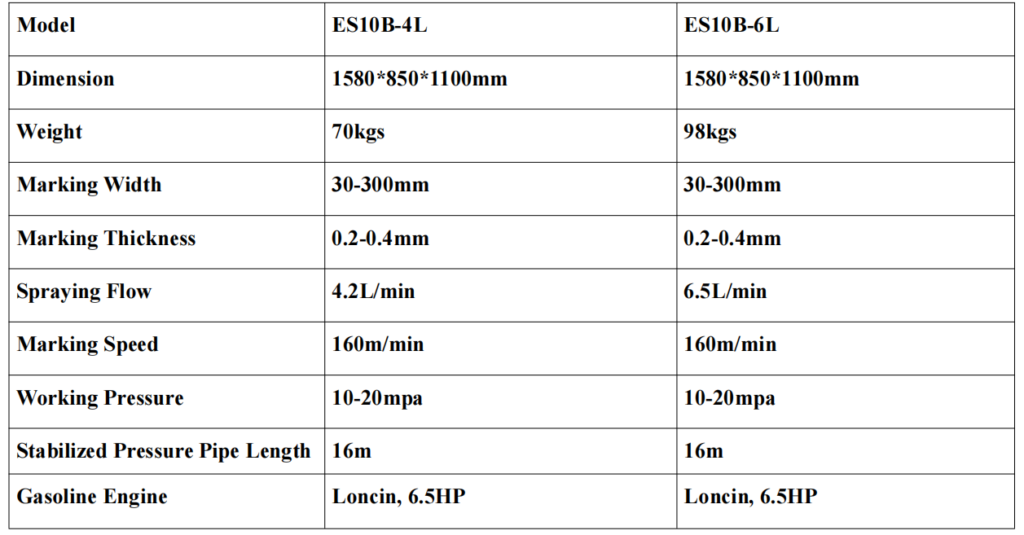

Product Parameter
Model | ES10-6L |
Dimension | 1580*850*1100mm |
Weight | 98kgs |
Marking Width | 30-300mm |
Marking Thickness | 0.2-0.4mm |
Spraying Flow | 6.5L/min |
Marking Speed | 160m/min |
Working Pressure | 10-20mpa |
Stabilized Pressure Pipe Length | 16m |
Gasoline Engine | Loncin, 6.5HP |

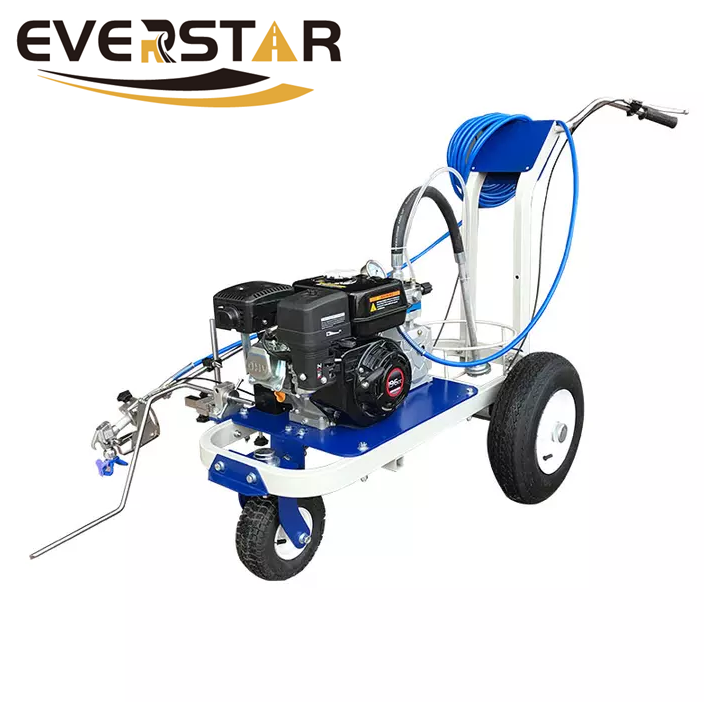

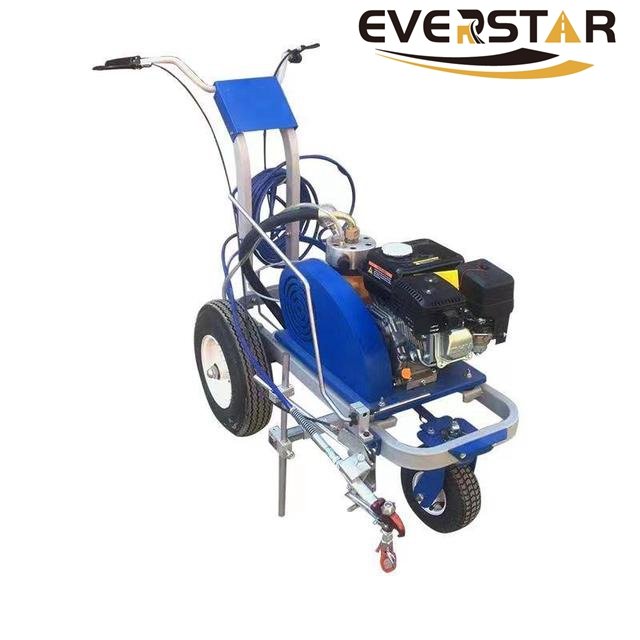

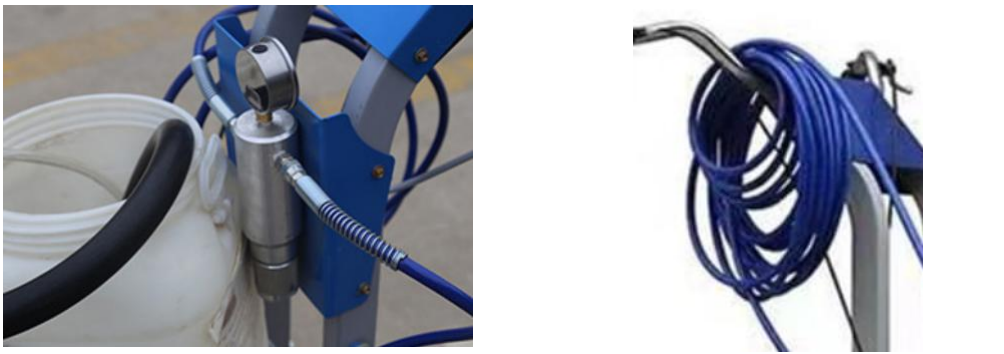

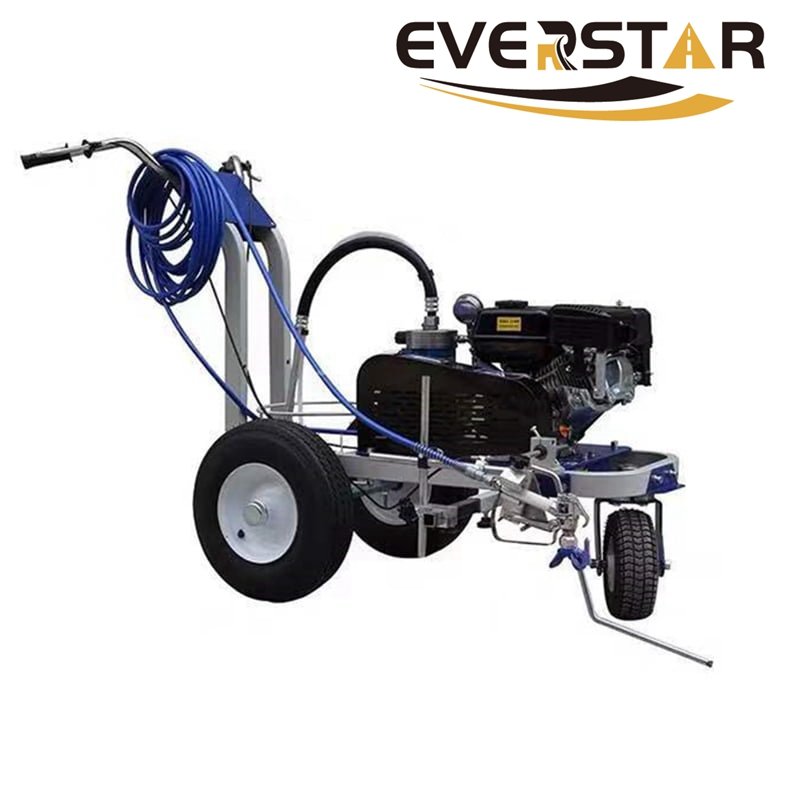

Product Display

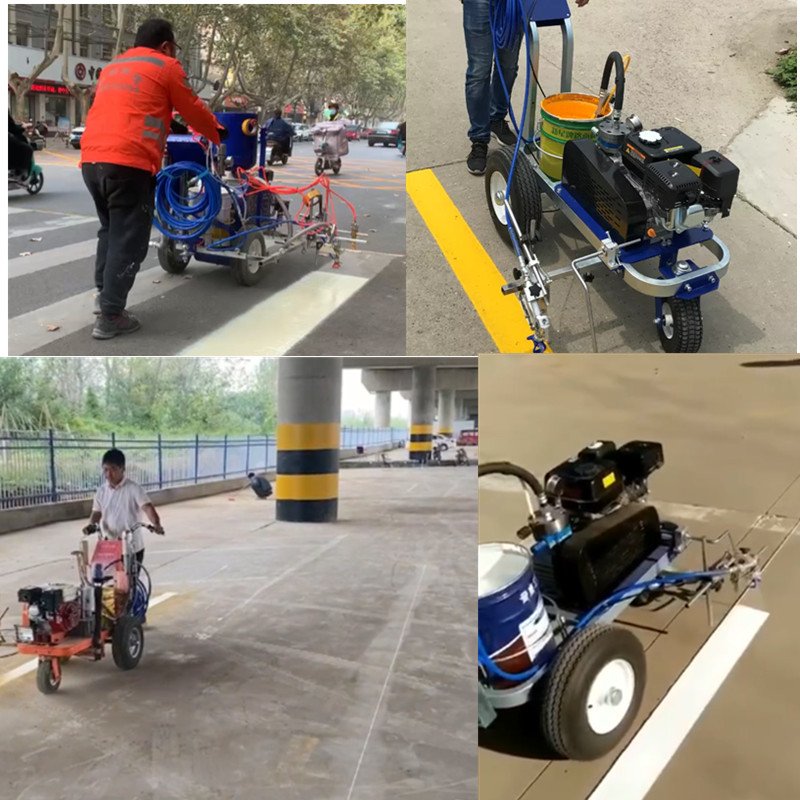

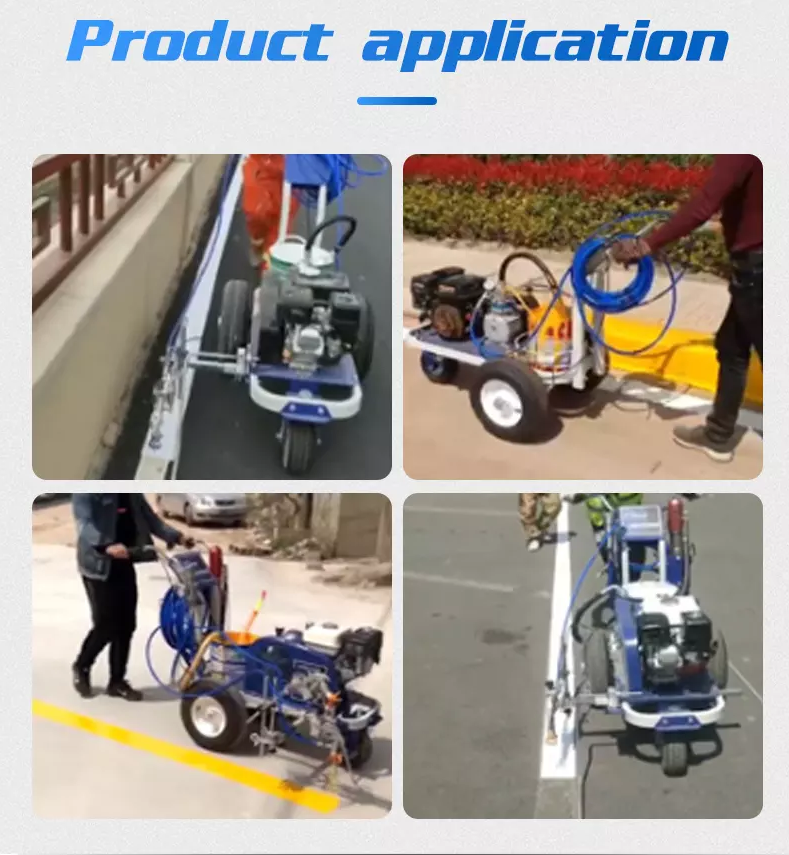

application
Applicable paints
