Description
Product Description
The mobile mining diesel light tower is widely used in the site where power supply is not available. For example, mine, municipal roads buildings, highway, construction field operations and other departments at night.
Features:
- Equipped with famous brand engine, could guarantee quality stability and excellent performance
- Equipped with metal halogen lamp, large luminous flux and long life
- High-performance self-braking hand winch
- 4-section lifting rod, galvanized lamp post, anti-drop, corrosion-resistant
- Five windproof support legs for stable support
- Integrated operating panel with rain cover
- 7 meters lighting height, adjustable irradiation angle, long irradiation distance
- Large capacity fuel tank, long duration
Specifications
| Model | ES-4VA400 |
| Engine | KAMA |
| Engine Model | 186F |
| Engine Type | One-cylinder, air-cooled, four stroke |
| Power | 6KW |
| Frequency | 60Hz |
| Rotating Speed | 3600rpm |
| Emission Level | TIER 4 |
| Alternator | Brushless and single phase |
| Alternator insulation | CLASS H |
| Rated Voltage | 230V |
| Output Socket | 1(230V,10A) |
| Continuous Working Time | 28 hours |
| Fuel Tank Capacity | 35L |
| Number & Power of Lights | 1000W*4 |
| Luminous Flux | 440000lx |
| Irradiation Distance | 100m |
| Headlight | Metal halide floodlight |
| Stabilizing Legs | Manual adjustment |
| Light Pole Telescopic | Vertical lift |
| Lifting Method | Hand lift |
| Lifting Mast Operation | 4-section lifting bar |
| Slope | <10 |
| Wind Resistance Level | <8 |
| Suspension and Brake | Hex rubber shaft without brake |
| Size | 2180*1130*2700mm |
| Pole Height | 7m |
| Tires and Rims Size | 13” |
| Weight | 550kgs |

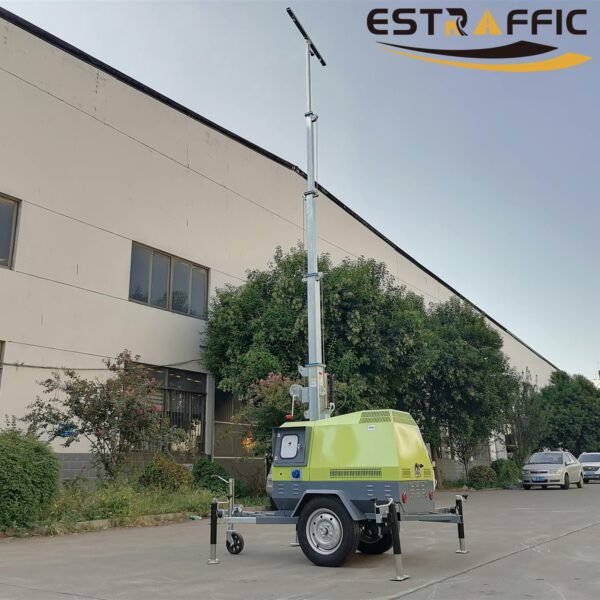

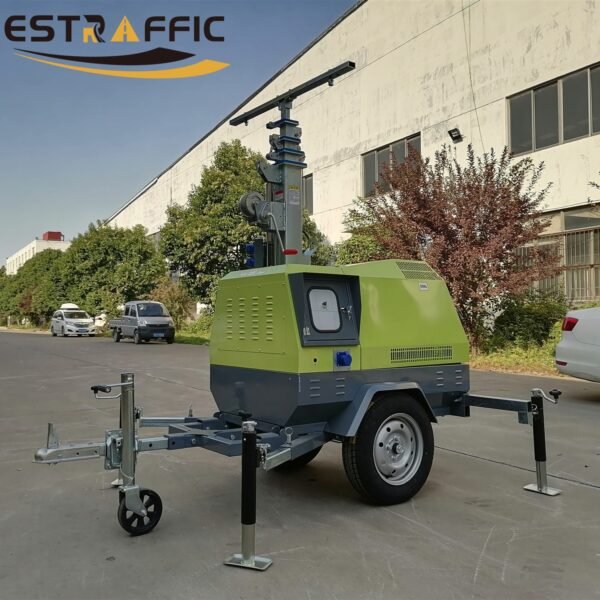

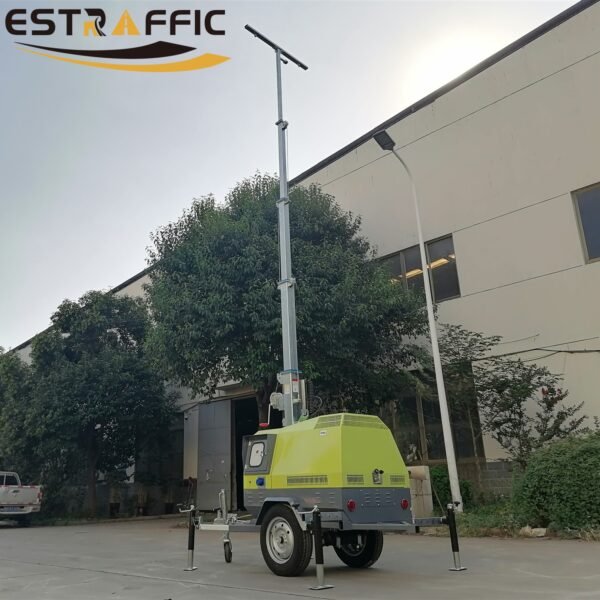

Detailed Photos
