Description
Definition

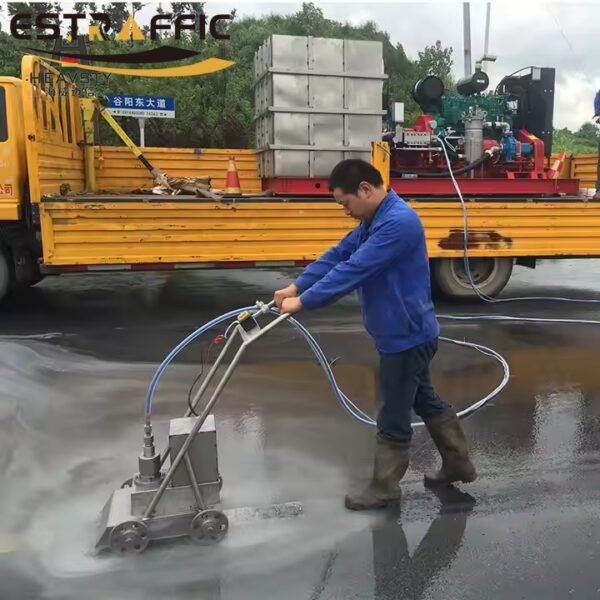

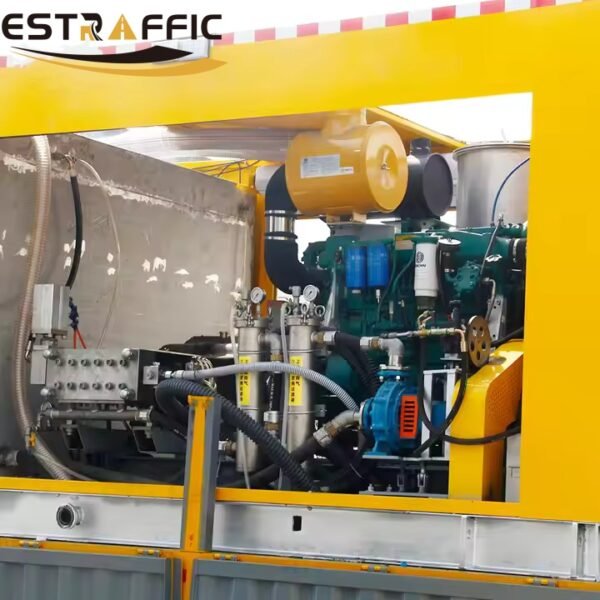

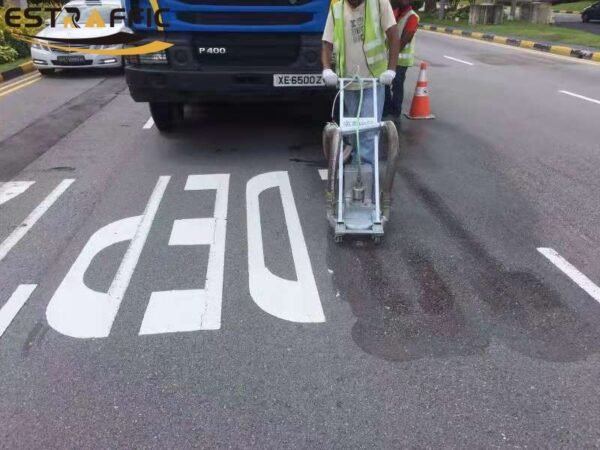

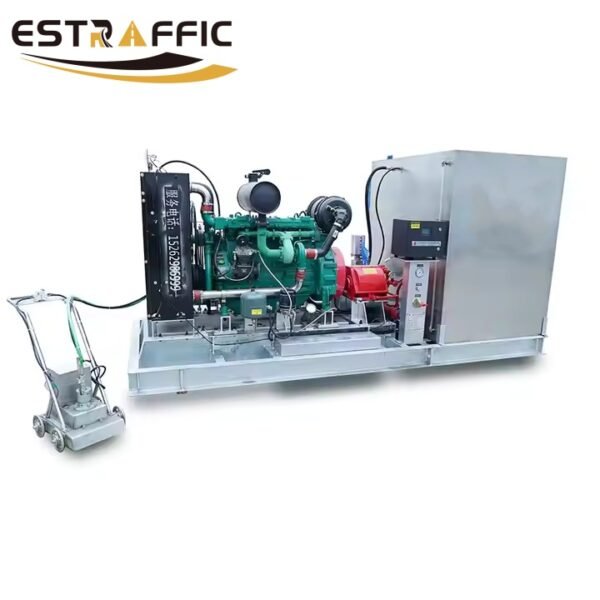

High pressure water blasting road marking line removal machine removing all kinds of road marking lines with its high pressure water. It has advantages of easy operation, simple maintenance, high efficiency without damaging road surface,environment friendly, compulsive lubricating system and oil cooling system, complete computer monitoring system, water supply pipeline system: stainless steel and withhold hose, imported safety bursting diaphragm, pressure regulating valve: imported from Japan, high pressure gauge: imported from Germany.
Specification
Recovery System Provided Recovery Percent: | over 95% |
Engine Diesel Engine | Wechai & DEUTZ™ |
Engine Power | 120 kw |
Rev. Speed | 1500 rpm |
Working Pressure | Max. 140 mpa (1400 bar) |
Flow Max. | 30 L/min |
Blasting Head | Walk Behind Type |
Blasting Head Size | 1050 x 540 x 980 mm |
Blasting Head Weight | 52 kg |
Water Pipe Length | 12 meters |
Recovery Pipe Length | 12 meters |
Working Voltage | DC 24V |
Transmission Model | Belt Drive |
Jet Nozzels (No.) | 12 ~16 pcs |
Width of Removal | 180 ~ 250 mm |
Working Efficiency | 150 ~ 200 m2 / 8h |
Water Tank Capacity | 3.4 CBM |
Waste Tank Capacity | 3.4 CBM |
Working Truck Optional | 5.8 meter truck recommended |
Whole Dimension | 5750 x 2000 x 1800 mm |
Gross Weight | 3650 kg |
Features
- The equipment main machine adopts foreign advanced high-pressure pump manufacturing technology,which is themostadvanced equipmentwith upgradeandnew design in domestic.
- The main machine has stable running performance and low noise. The performance of high-pressure pump components is good and durable, and the sealing components have long continuous working time.
- The equipment is with simple operation, high level of automation, and perfect cooling system design.
- The design of the line cleaning actuator is unique and fine manufacturing, the performance is excellent, and the comprehensive performance exceeds the foreign products of the same type. The costisonly 1/5 of the foreign products.
- According to the width of the marking line to be removed or the need of cleaning object, the actuator can be arbitrarily adjusted to achieve excellent removing effect and optimal work efficiency.
- The equipment cleaning accessories are fully equipped to meet the cleaning and working requirements under various conditions. It is a multifunctional and comprehensive maintenance cleaning equipment. It can be custom produced according to customers’ needs, fully meet the customer’s working environment requirement.
