Description

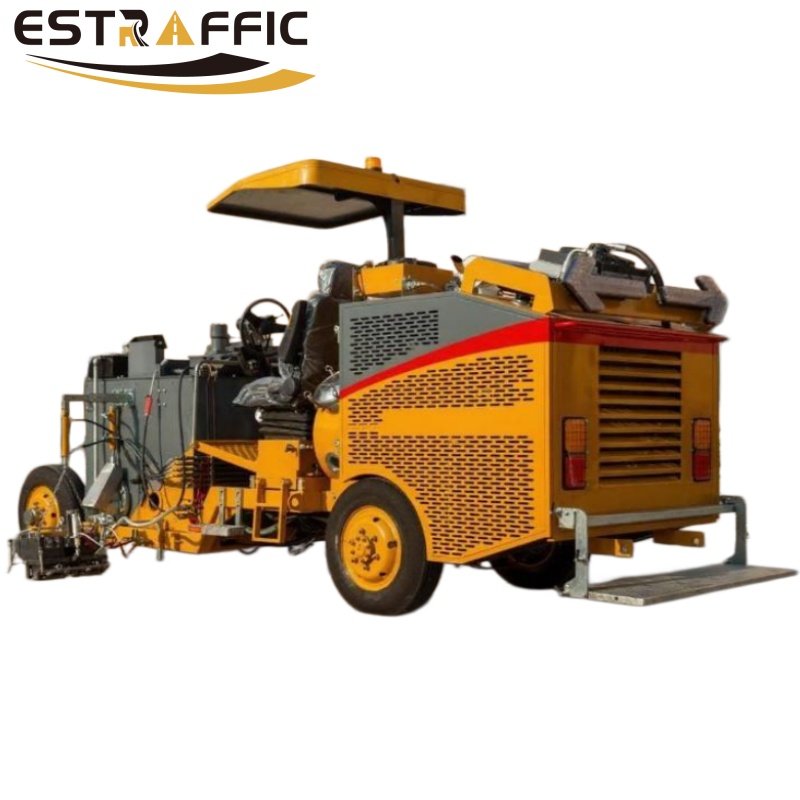

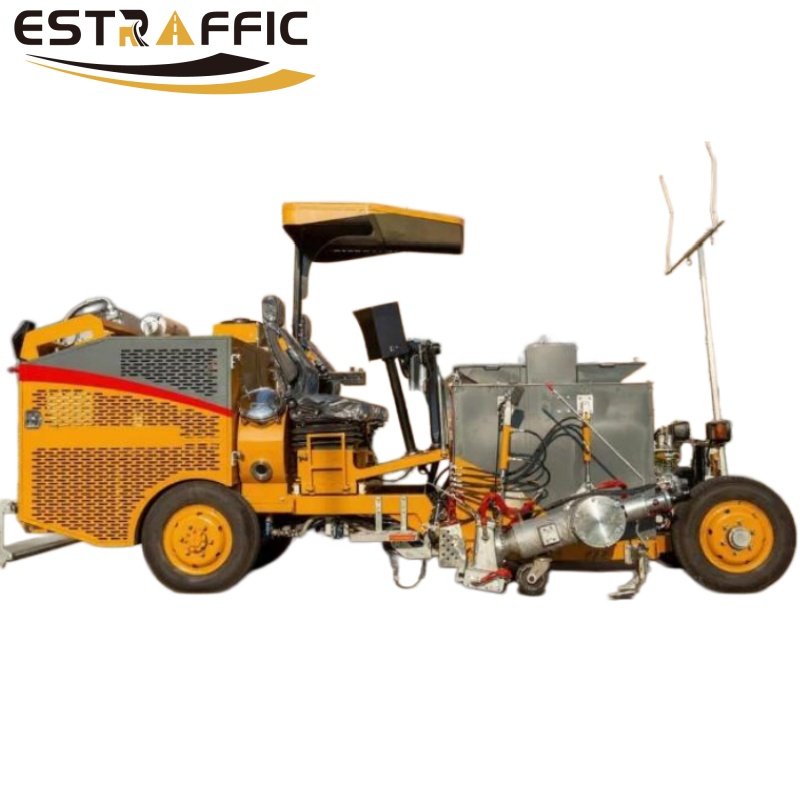

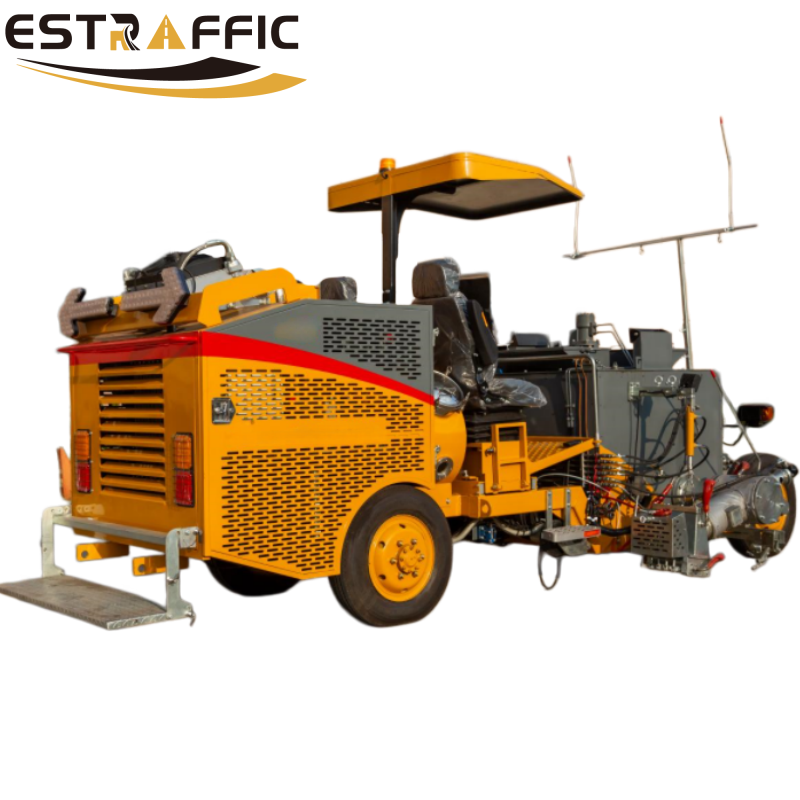

ES-500 Driving Type Thermoplastic Road Marking Machine is a kind of high-tech marking equipment with high efficiency, high marking quality, and with high safety and environment conservation.
This marking equipment is available for customization of single function or multiple functions, in order to reduce customer’s cost on the basis ofmeet customer’s requirement.
Technical Parameter
Engine Power | 56KW four-cylinder water-cooled diesel engine |
Drive Unit | Hydraulic drive infinitely variable |
Driving Direction & Speed (Km/h) | Forward or backward, 0-10km/h |
Marking method | Thermoplastic screeding flat line / thermoplastic convex line, /thermoplastic extrusion. There are more than 40 kinds of various patterns line. |
Steering system | More labor-saving hydraulic system |
Paint tank capacity : | 500L（1000 KG） |

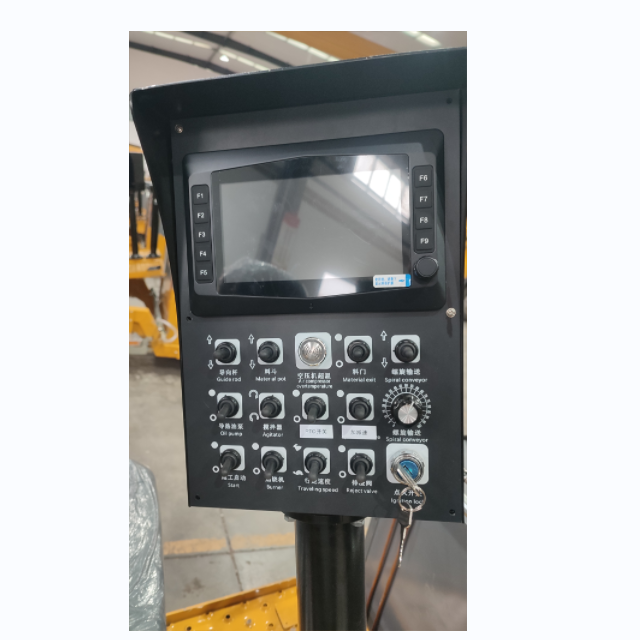

Control system: | Intelligent control system |
Glass beads tank capacity: | 2*75=150L (300 KG) |
Heating mode: | Diesel oil burner heating and heat transfer oil insulation |
Marking Line Width(mm) | 50/100/120/150/200/250/300mm (optional, standard equipped with screeding device 150mm) |
Line thickness(mm) | 1.2-3.0(Adjustable) |
Size:(mm) | 5280X2200X2540 |
Weight（kg） | 3600 KG |
Advantages
1: All-In-One Multi-Functional Machine :
this series of Driving Type Thermoplastic marking machine adopts the platform design, can be equipped with gravity feed + Extrusion type hopper marking device, suitable for marking falt line and convex line, by changing the hopper quickly, the Extrusion construction of flat line or convex line can be easily
completed.
2: Excellent Marking Quality：
compared to the normal stop waiting for driving type road marking machine, its dotted end anti-drip regular, left and right side synchronous line drawing, paint and glass beads synchronous adjustment, glass beads leakage warning and constant speed walking and other proprietary technology, can significantly increase the adhesion of marking paint, straightness and reflectivity, marked by less joints, thickness uniformity, service life and reflectivity can be extended by 30%
3: Quick Switch of Marking Device:
this machine is equipped with sliding operation device and quick change marking device, can realize both sides ofthe left side can draw lines, in need not for marking retrograde trouble.
4: Glass Bead tank :
this machine glass bead tank, can quickly realize the glass bead spray, through the pressure to make the glass bead spray more uniform, according to the size of the dissemination can be adjusted.
5: Constant Temperature Heating and Heat Preservation System:
this machine adopts imported diesel oil burner heating and heating efficiency is higher, heat conduction oil
heat preservation and automatic temperature control system, the organic combination of the three makes the paint can be in the optimal marking state, ensure stable quality of marking;

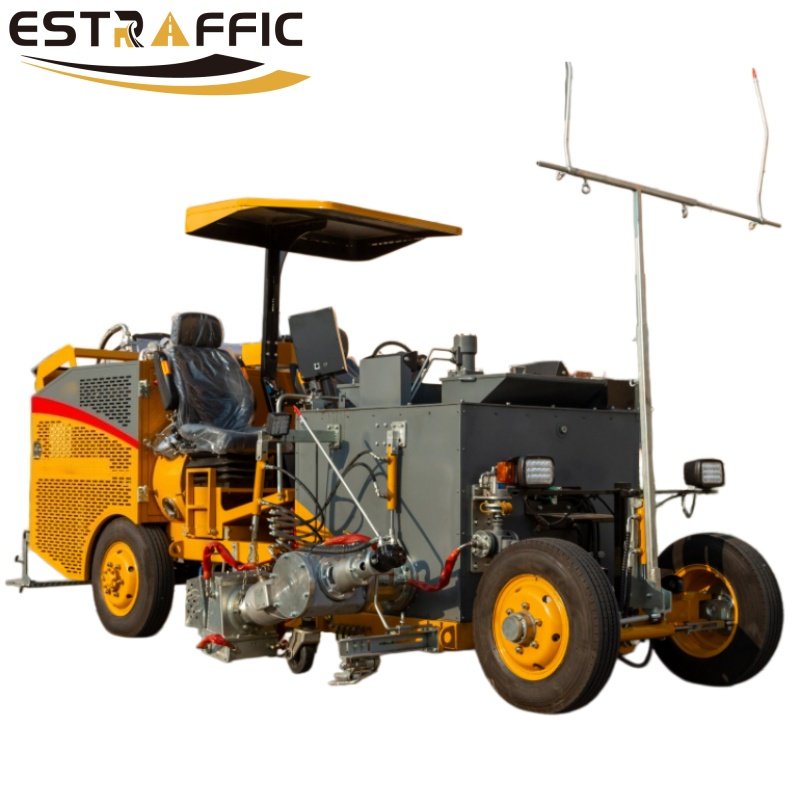

6: Follow-Up Guide Bar Device:
This machine is equipped with guide bar and steering wheel follow-up mechanism, to ensure that the pointer
always point to the baseline, make the marking more smooth, natural, and then with out-type seats, make the line alignment more rapid, more accurate;
7: Significantly Reduce Construction Management Costs for Marking:
This machine can be equipped with intelligent monitoring system, positioning system, departure warning system, fault warning system and construction data management system. The fault warning and analysis system of marking machine can effectively avoid the occurrence of fault, and can quickly complete the diagnosis and maintenance of fault The construction data management system can accurately collect and calculate the construction parameters such as material quantity, length, construction area, construction thickness and brightness in unit time, the accurate control of the whole process of marking construction can be easily realized and the marking management cost can be effectively reduced.
