Description
ES-2 self-propelled thermoplastic road marking machine is also called automatic road marking machine. It not only has the hot melting function for the thermoplastic road marking paint, but also can doing road marking line simultaneously. The hydraulic walking system supports It is flexible in operation and especially suitble for slope and mountain area road marking projects as the machine can save labor engergy and cost.
Product Parameter
Model | ES2 |
Dimension | 1320*850*1000mm |
Machine Weight | 147kgs |
Paint Tank Capacity | 120kgs |
Marking Width | 50mm, 80mm, 100mm, 120mm, 150mm, 200mm, 300mm, 400mm, 450mm, 500mm |
Marking Thickness | 1.0-3.0mm |
Marking Speed | 0-20km/h |
Heating Temperature | 180-210°C |
Heating Method | Liquefied Gas |
Applicable Liquefied Gas Tank | 15kg |
Engine | Honda Gasoline Engine 5.5HP |
Stirring System | Hydraulic Stirring System |
Walking System | Hydraulic Stepless Walking System |
Features
- Stainless steel insulation barrel: double-layer stainless steel thermal insulation heating barrel
- Alloy floor knife: carbide ground knife, no eccentric sleeve device, adjustable marking thickness range
- Spreader: glass beads use manual gear spreader, without speed-adjustable buffer configuration, standard glass beads dispenser has adjustable device
- 5pcs bottom fireheads heating thermoplastic paints continously and efficiently.
- Automatic walking forward and backward by hydraulic stepless system

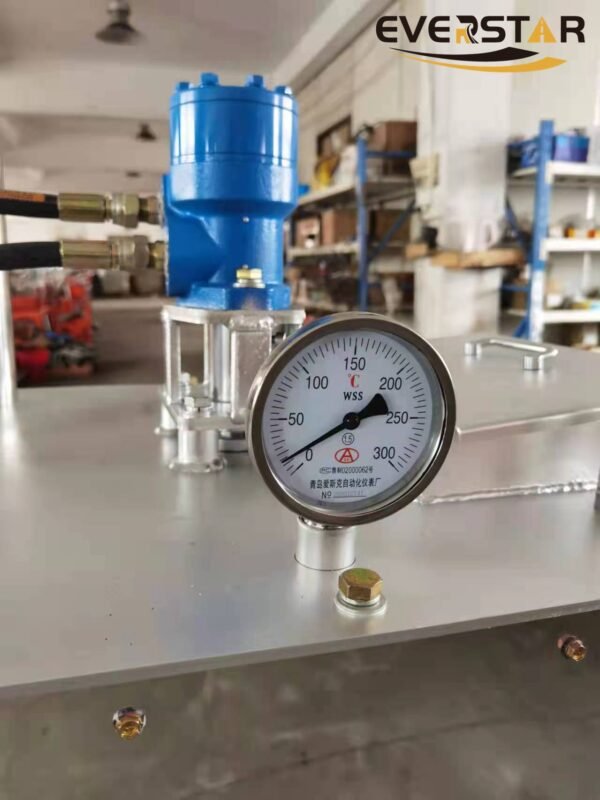

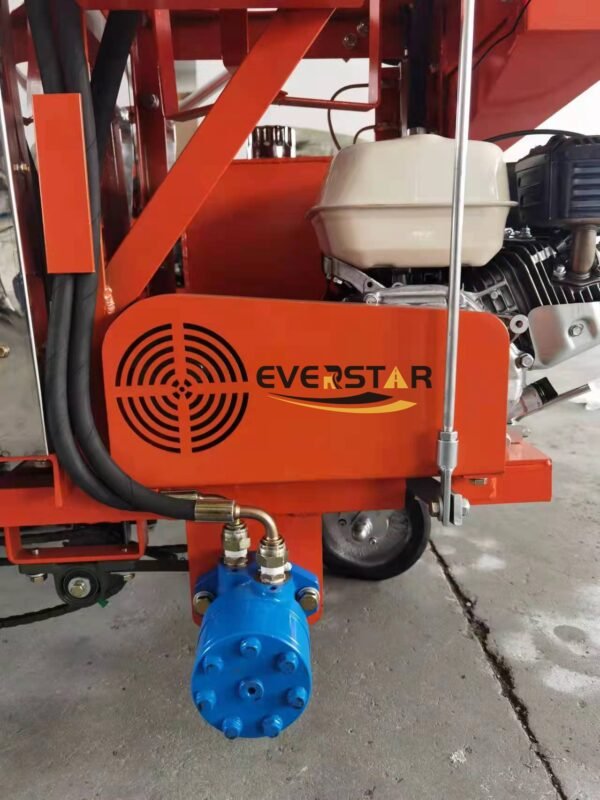

- Hydraulic stirring system can mix thermoplastic paints evenly in forward and reverse directions.

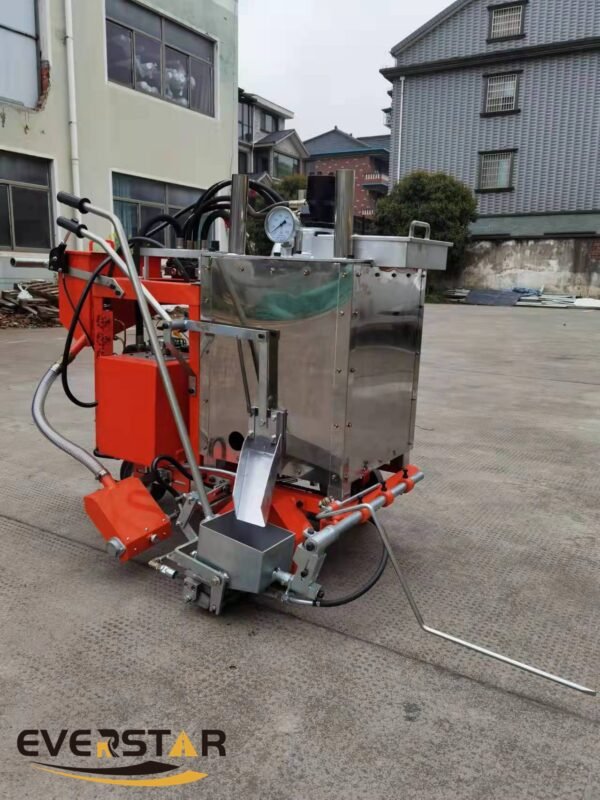

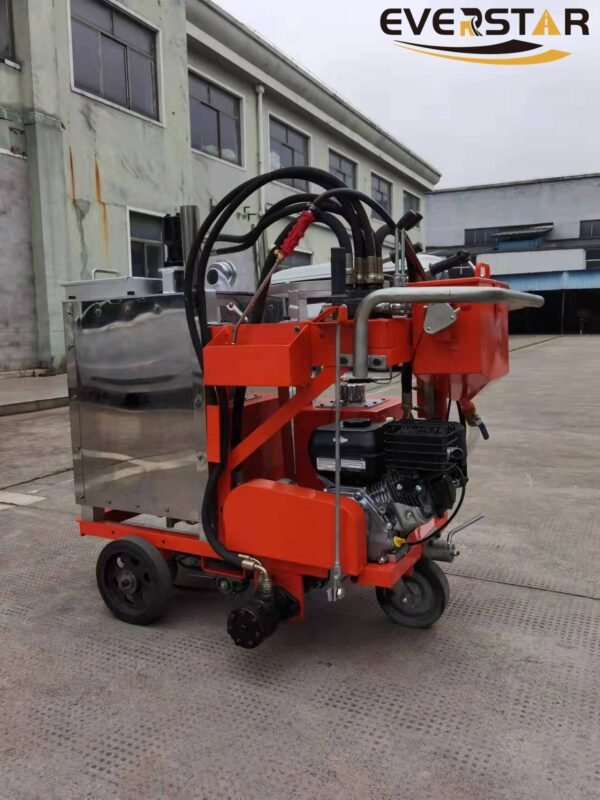

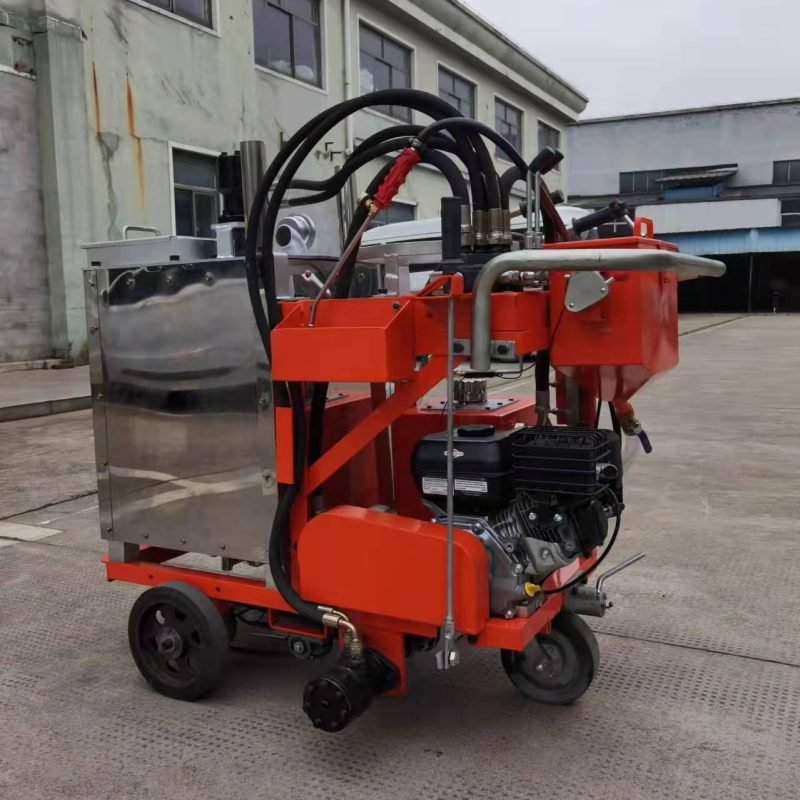

Product display
