Description
Definition

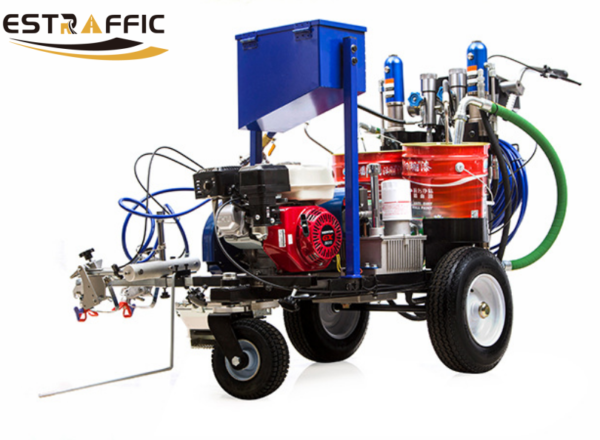

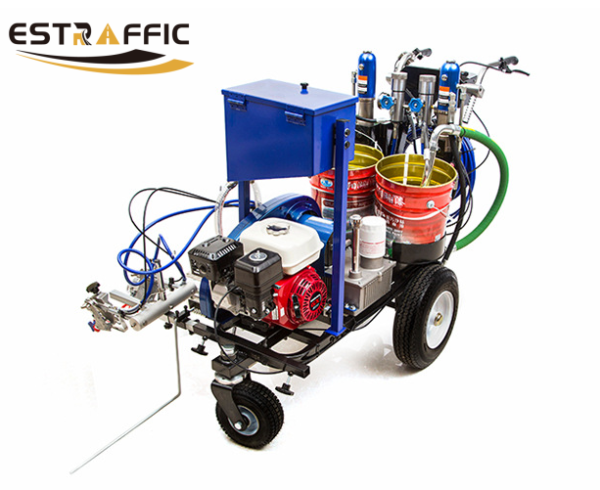

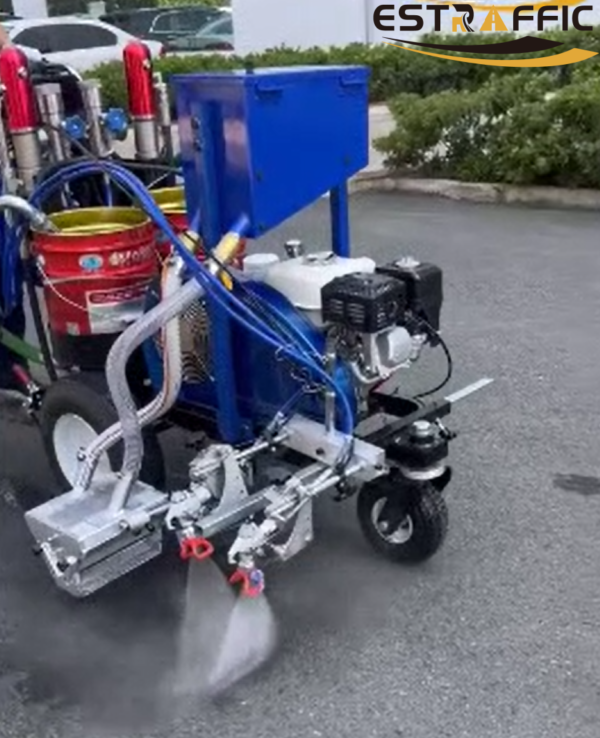

Airless spray two component cold paint road marking machine is a painting technique in which a device adopts the principle of double pump ternal mixing sprays coating normal temperature paint material:two component airless spraying cold road marking paint- through the air onto a surface.
Two-component solvent-free spraying road marking paint is composed of methyl methacrylate, special functionality of acrylic ester, plasticizing acrylic ester and etc. Its curing velocity is quick, the application performance is excellent. Since application, the development speed of two-component spraying road marking paint has been extremely swift and violent, and the application domain has been expanded unceasingly, which is known as the third “road marking revolution”. Its presence has solved the problems that the cold lines are weak in wear resistance, the thermoplastic lines are easy to be stained and of poor reflective effect.
Specification
Engine | Gasoline engine, Honda 6.5HP power |
Pump | Hydraulic plunger pump |
Driving system | Single gun 0.039; double guns 0.031 |
Working pressure | 3300PSI |
Working flow | 15L/min |
Line thickness | 1mm(adjustable) 1kg/m² |
Oil tank | 3.6L |
Glass beads tank | Capacity 20kgs |
Glass beads dispenser system | Air pressure spraying, using imported oil-free air compressor, glass bead spray gun |
Working efficiency | 2-3km/h |
Dimension | Length 1800*width 820*height 1150mm (excluding pointer) |
Weight | 180kgs |
Features
① Advanced shock mitigation system
② Lightweight fixed device of nozzle
③ Imported nozzle
④ Continuous cooling system
⑤ A component B component Static mixing device
⑥ Automatic quick cleaning device
