Description
Product Parameter
- Line Thickness Tester
- Measurement Range：-12.7～+12.7mm
- Minimum Resolution：0.01mm
- Indication Accuracy：0.02mm
- Using Temperature Range：0℃～40℃
Features
- Unique precision wire gauge with digital display for quick determination of dry film thickness of road markings and similar coatings, measured relative to the substrate or the marking itself.
- The digital display provides accurate measurement results in seconds.
- Easy handling, robust construction and ergonomic design

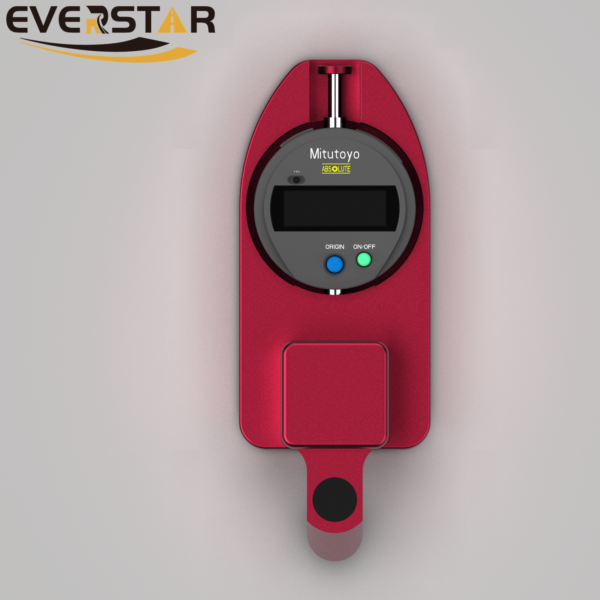

Product Display
1: Gauge Outfit
2: On-Off
3: Zero button (Return)
4: Screen
5: “±” switching (Positive and negative switching)
6: Contact Point)
7: Hl column (Measuring Column)
8: Measuring Arm (Measuring Arm)

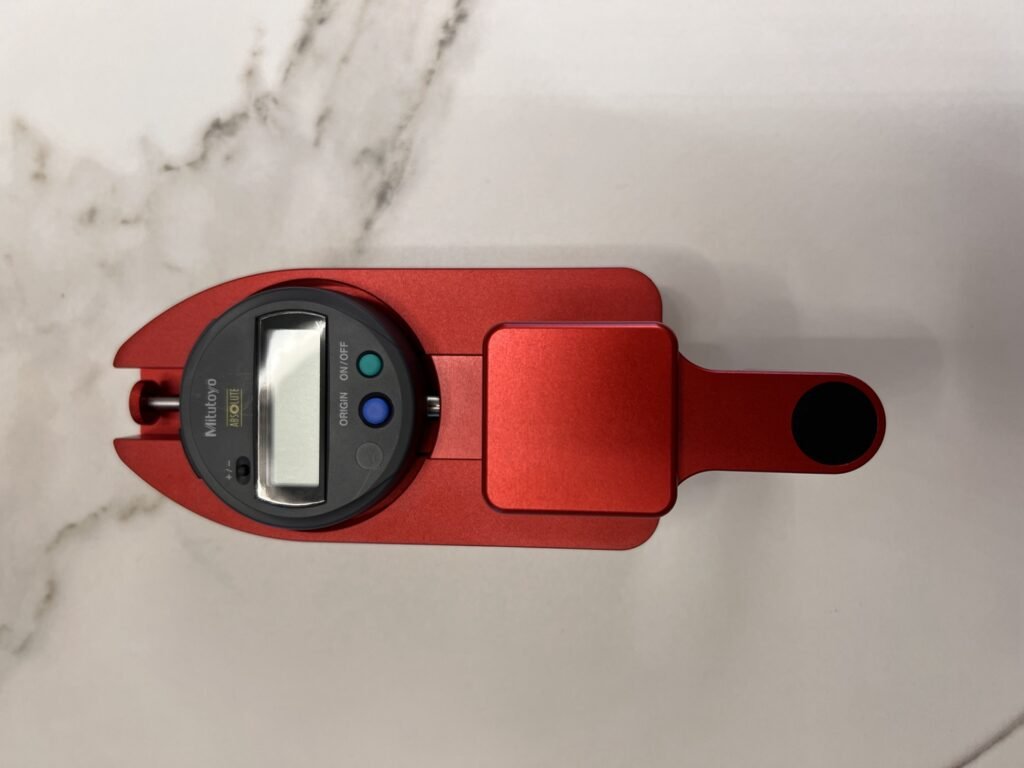

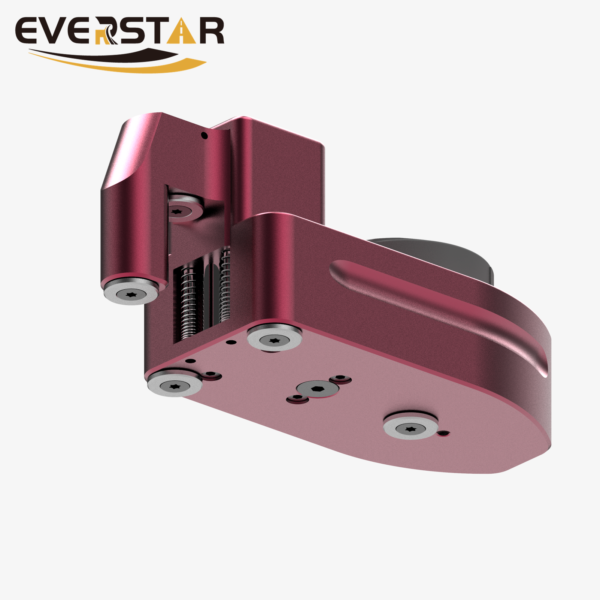

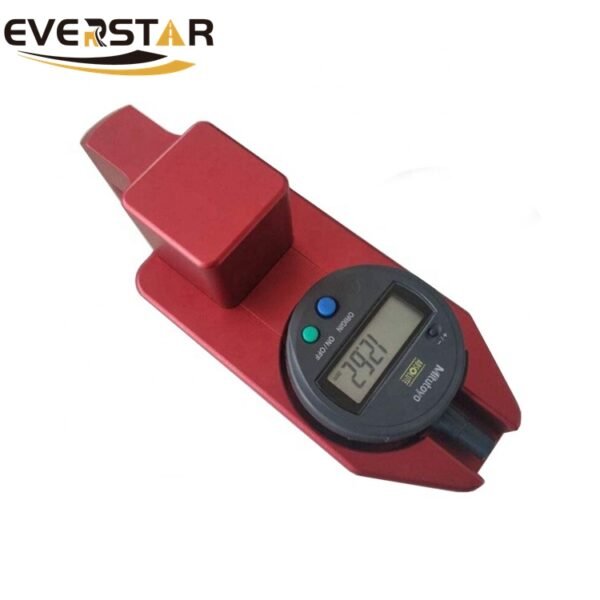

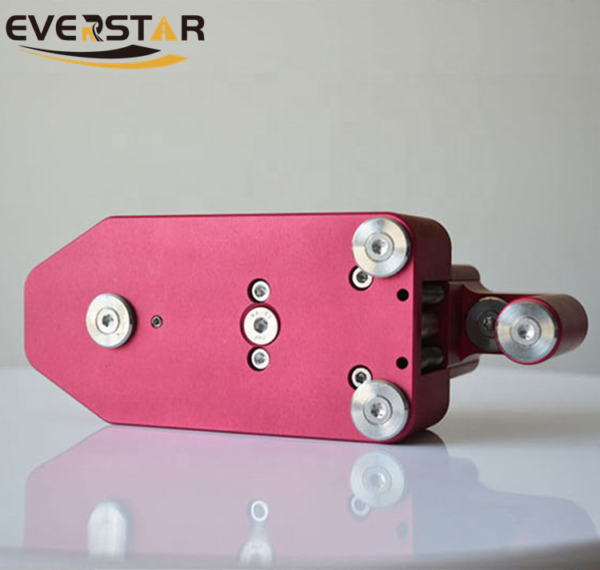

Detailed Photos
Applications
- Applicable to many types of road signs including or not including reflective lines.
- A high-precision measuring instrument that can quickly measure the coating thickness of road signs and similar coatings.
- Digital display, clear and easy to read.
- It can be measured directly on the road, and can also be measured on samples in the laboratory.
- Applicable to national transportation departments, highway laboratories, and road sign manufacturing units.
