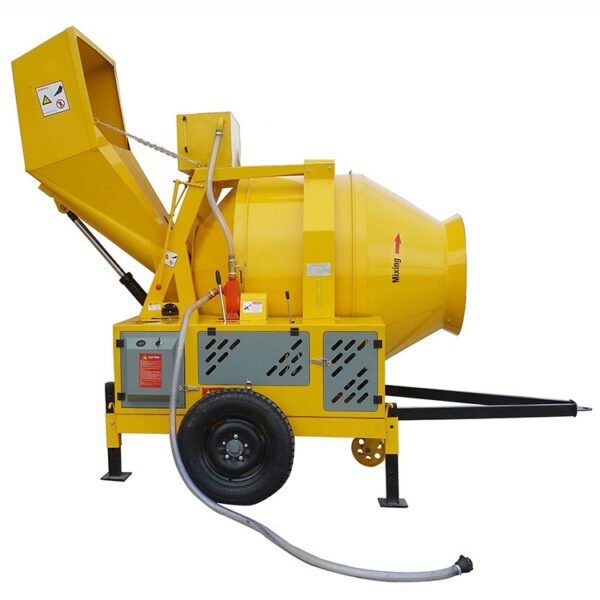

ES350-DH Self loading Concrete Mixer with Diesel Engine Power and Hydraulic Tipping Hopper is a self loading concrete mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.
The mixer is designed and manufactured according to GB/T9142-2000<Concrete Mixer>, it is featured by novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, ES350-DH Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
Features:
1) Chinese top brand Changchai or Changfa powerful water-cooled diesel engine as option
2) Steel flexible guide wheel
3) Robust and strong trailing rod
4)Big capacity hydraulic oil tank(70 liter)
5) Middle situated and bolt connected design of grand gear ring
6) Wear resistant plate for mixing drum, thickness from 6mm to 8mm
Product Display
Features 1:Concrete Mixing DrumMaterial: Q345 Wear resistant Steel Plate (1)The Drum Thickness is 6mm,made by Q345 Wear resistant Steel Plate. So our machine net weight is 1700KGS. 8 mm MIXING drum as Option. (2)Middle Situated and Bolt Connected Design of Grand Gear Ring. a. The Middle Situated Design of Grand Gear Ring makes power transmission more balanced b.The Bolt Connected Design could it more easier to change the gear ring when it is broken.
|
Features 2:4 Sets of Riding Wheel with Same Size of Φ220mm x75mmCompare with other suppliers,we provide 4 Sets of Riding Wheel with Same Size of Φ220mm x75mm ,much bigger than others, this design can make sure the Drum rotation more smoothly ,and have a longer service life. By the way,we provide NSK Bearings to our customer. |
Features 3:The Heavy-duty FrameWe use No.12 BOX IRON as our Concrete Mixer Frame.The material width is 12cm.which is much more robust than normal type. |
Features 4:Transmission systemRational
|
Features 5:Portection CoverMaterial: Q235 Steel Plate,3mm |
Features 6:Water-cooled Diesel EngineBrand: CHANGCHAI Brand, CHANGFA Brand,JD Brand as option |
Features 7:Chassis- mounted Big Water TankThe water tank is mounted on the top of chassis of Mixer. The water tank and chassis is connected by bolt, which is connevient for maintenance. The total volume of water tank is 100 Liter. |
Features 8:Robust and Strong Trailing Rod and Steel Flexible Guide WheelThe trailing rod of this mixer is much more bigger and stronger than oridinary type, Besides the normal two sets of pneumatic wheel, the mixer is also equipped with extra one set of Steel Guide Wheel in front, which could make the operator control the direction of mixer easily when pulling it. Two Guiding wheels as option.
|
Features 9:Big Capacity Hydraulic Oil Tank(70 Liter)The volume of the hydraulic tank is 70 liter. Much more bigger than other factory(Most of them is only about 30 Liter). This big hydraulic tank coud store more hydraulic oil and prevent hydraulic oil reach too high temperature when the mixer run for a long time. |
