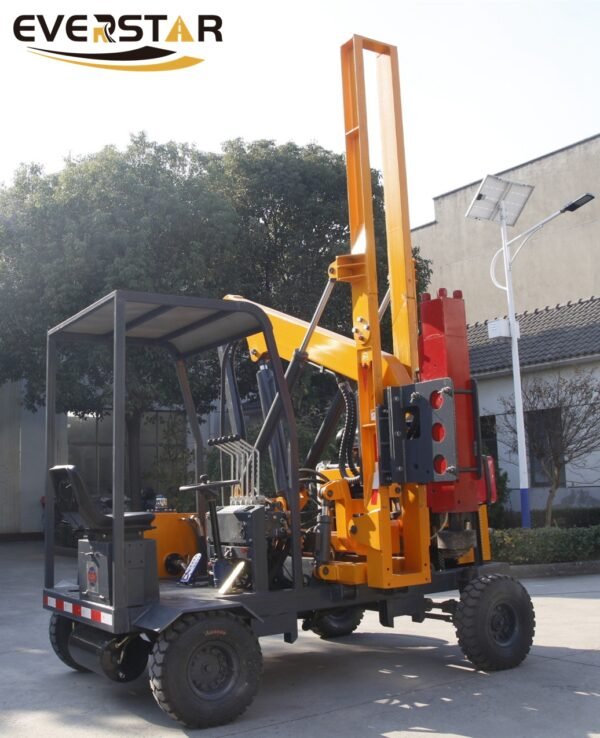

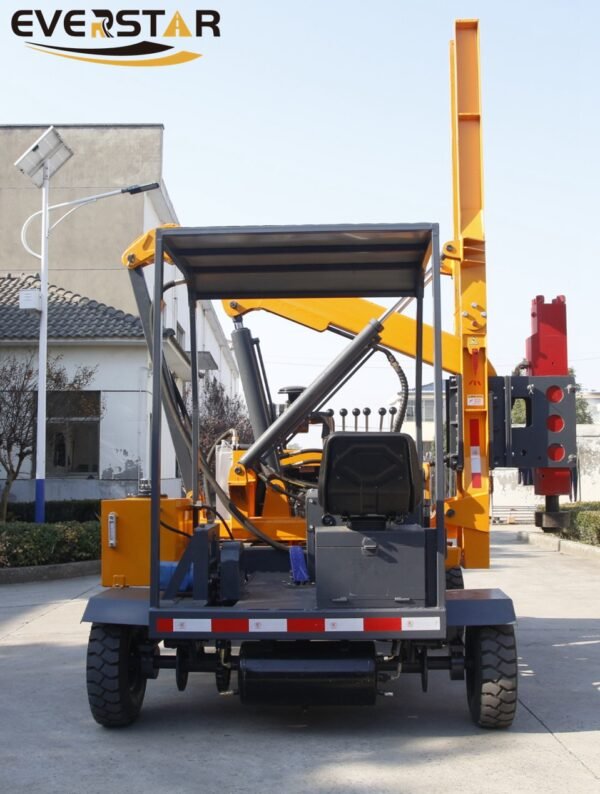

ES-F Hydraulic folding model pile driver piling machine is a special piling equipment used to drive the guardrail post into the subgrade soil layer during the construction of guardrails such as rural roads, expressways, and urban roads.
ES-F Hydraulic folding model pile driver is a special piling equipment used to drive the guardrail post into the subgrade soil layer during the construction of guardrails such as rural roads, expressways, and urban roads.
It is equipped with the diesel engine with reasonable power and superior performance to provide powerful power resources for construction operations.
The machine is powered by a single-cylinder and four-cylinder diesel engine, and the walking is driven by a hydraulic motor.
It has stable walking, accurate positioning during piling, flexible displacement, durable and economical.
It has the characteristics of saving time and labor, and is especially suitable for piling construction of new highways.
The piling height is as per the post height customization.
It has compact size and easy operation features.
Model | ES-F Hydraulic Pile Driver |
Hammer Weight | 230kgs/330kgs |
Power(HP) | 20KW/36KW |
Working Pressure | 18Mpa |
Impact Frequency | 10-15Hz |
Working Flow | 36-65L/min |
Wheel Distace | 1600mm |
Wheelbase | 1750mm |
Size(L*W*H) | 2500*2250*3800mm |
Weight | 2300kgs/2600kgs |
Optional Configurations | Driving cab/Lifting frame/Roof |
Features:
