Description

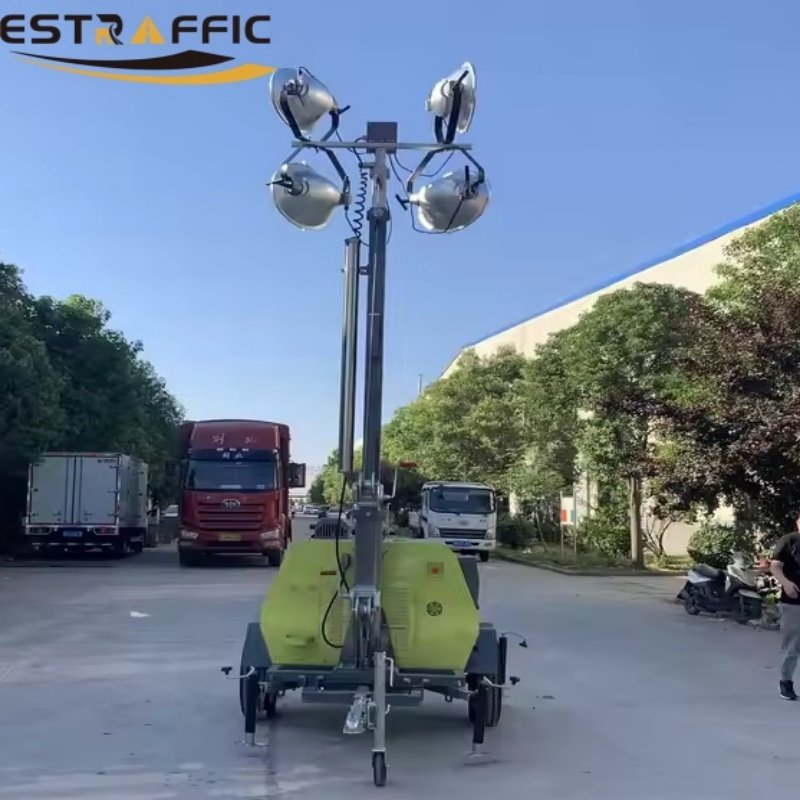

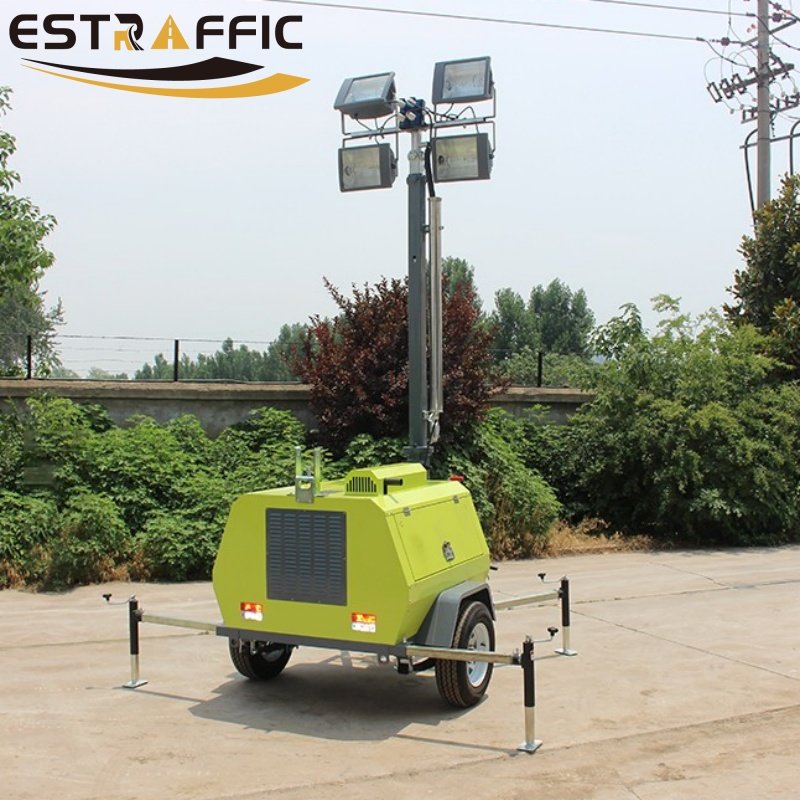

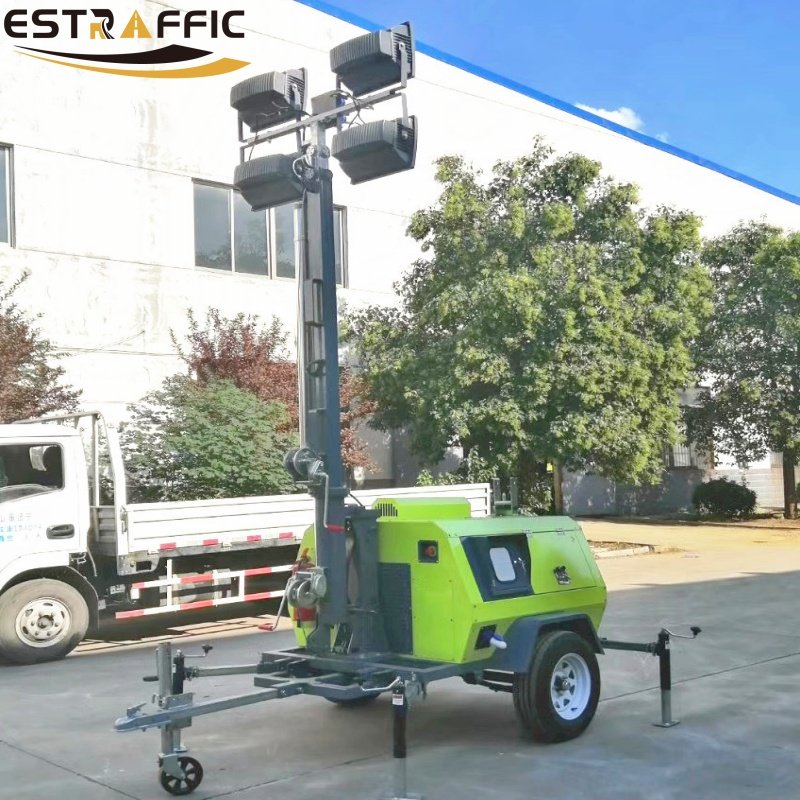

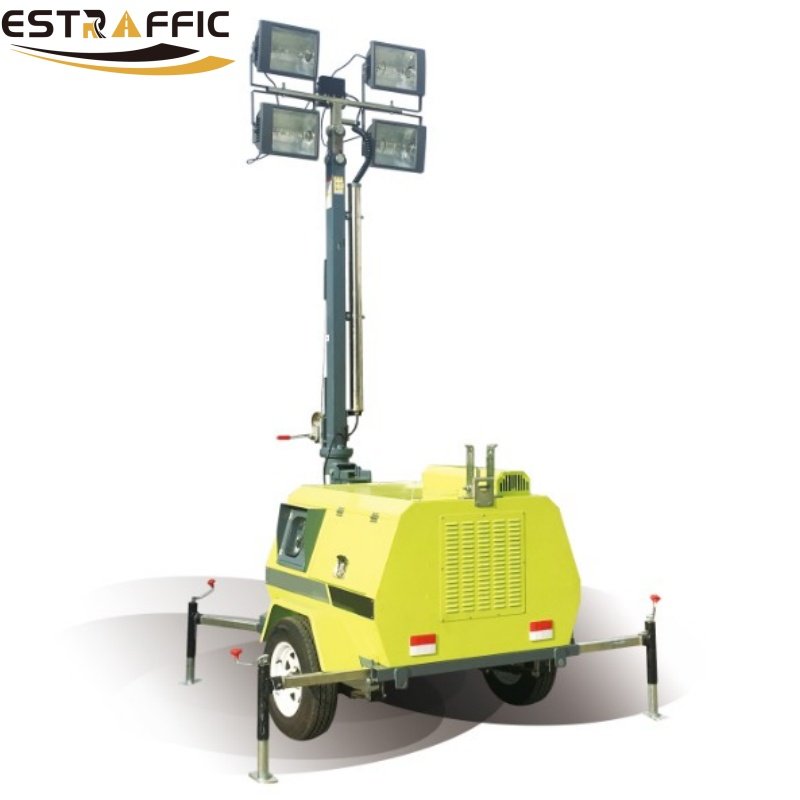

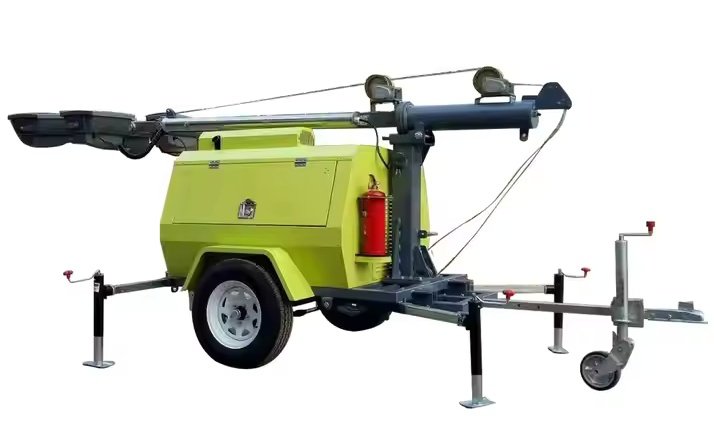

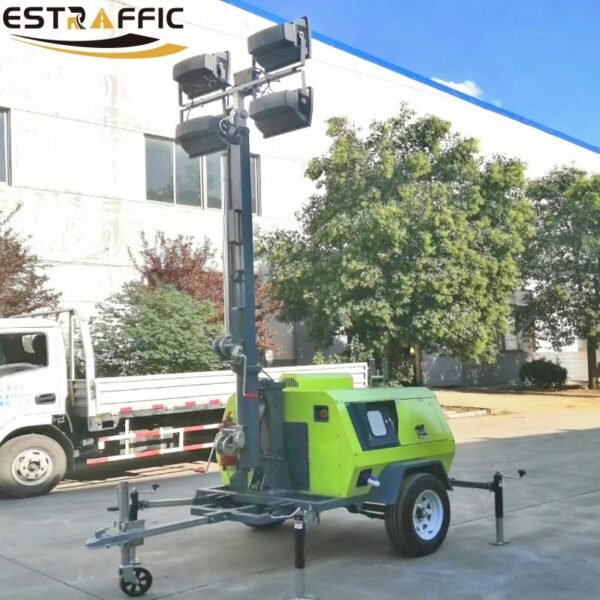

9M OUTDOOR USE TRAILER MOUNTED LIGHTING TOWER
A portable light tower is a self-contained lighting unit that is easily moved and used in various locations, offering bright illumination for construction sites, events, and other outdoor activities. These towers typically include a generator, a high-intensity lamp, and a telescoping mast for raising the light to the desired height.
Technical specification
Model | ES-4TN4000 | ES-4HVP1600 | ES-4TNVH1600 | |||||
Engine Brand | CHANGCHAI | YANMAR | KUBOTA | KUBOTA/YANMAR | CHANGCHAI | KUBOTA | ||
Engine Model | 3M78 | CZ380Q | 3TNV76 | D1105 | D1105/3TNV76 | 3M78/CZ380Q | Z482 | |
Engine Type | Three cylinder, water-cooled, four stroke | Two cylinder,water-cooled,four stroke | ||||||
Power | KW | 11.5 | 14.3 | 10.7 | 12.6 | 12.6/10.7 | 11.5/14.3 | 4.8 |
Rotation speed | rpm | 1500 | 1800 | |||||
Burning method | E-TVS | / | E-TVS | |||||
Lifting method | / | Hydraulic elevating | Electrical Self-lifting | |||||
Motor protection class | IP23 | IP65 | IP65 | |||||
Headlights | Metal Halide Flood Lights | LED lamp | Metal Halide Flood Lights | LED lamp | LED lamp | |||
Luminous flux | lm | 440000 | 224000 | 440000 | 224000 | 360000 | ||
Power & number of lamps | w | 1000×4 | 400×4 | 1000×4 | 400*4 | 400×4 | ||
Noise level | dB | 72 at 7 meters | ||||||
Maximum lift height | m | 9 | ||||||
Product Display

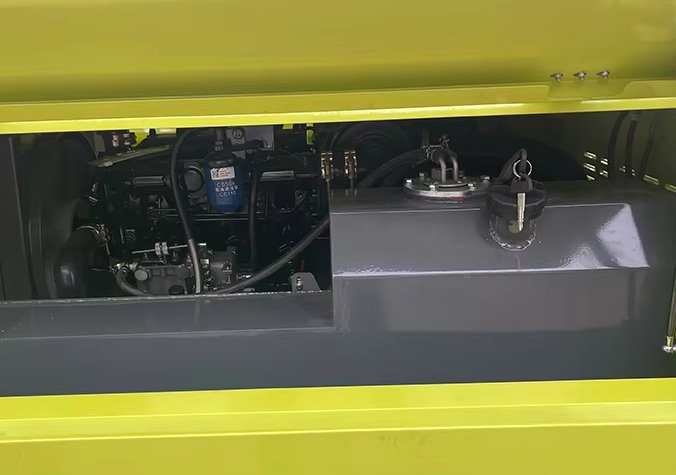

110 Liter large capacity fuel tank

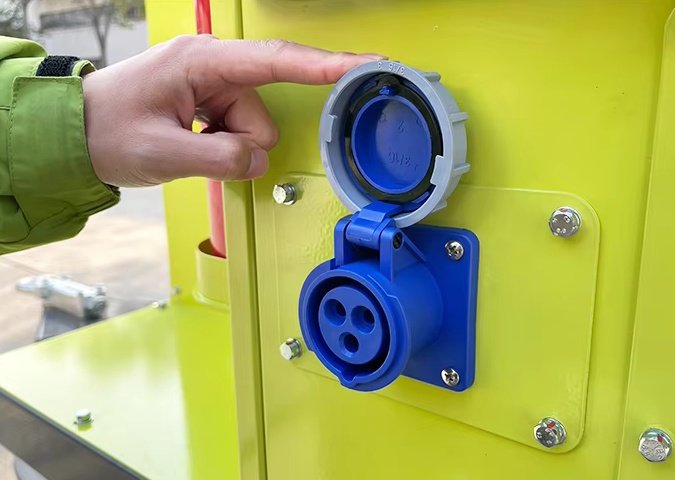

Waterproof aviation plug can be connected with external power

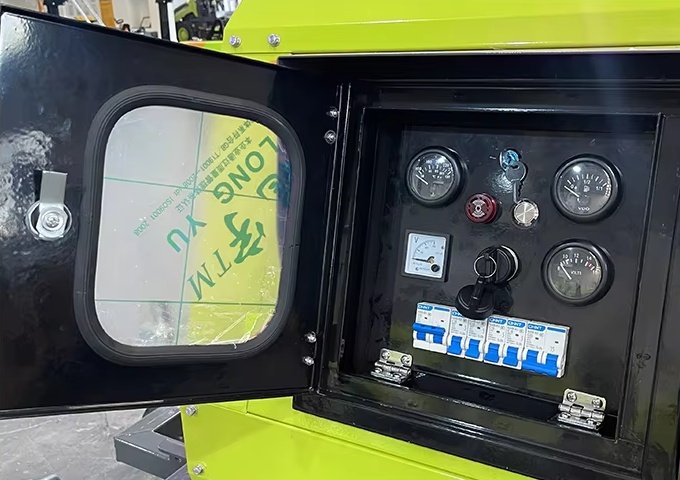

One click start and one click lift operation panel

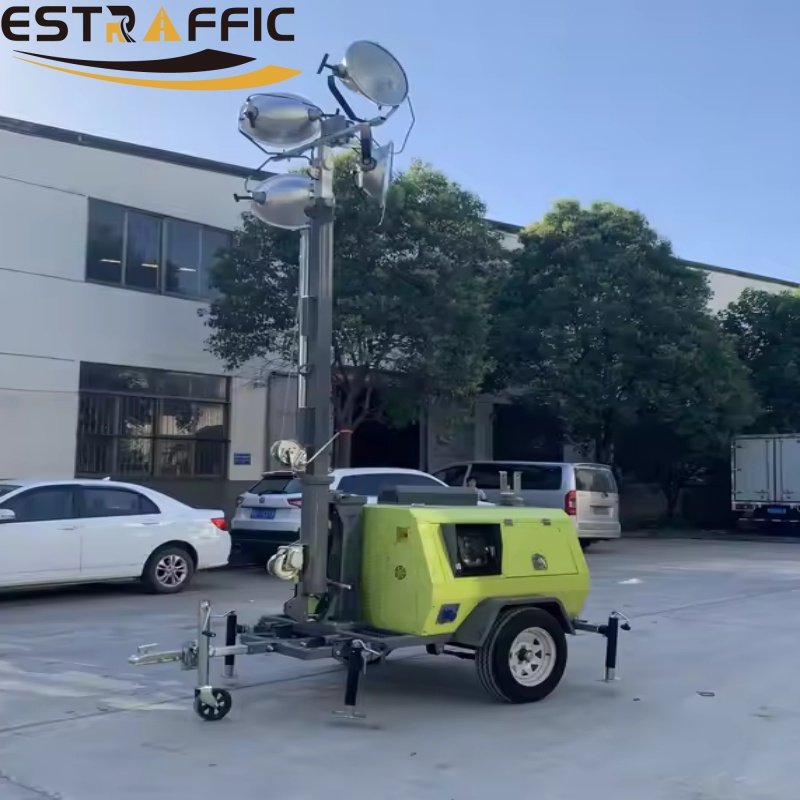

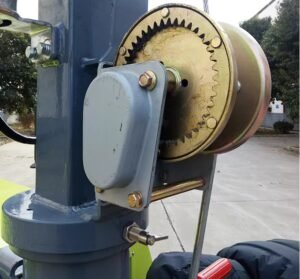

High performance hand cranked winch
The light pole can be extended vertically and folded for easy transportation
FEATURES
1.Equipped with imported power, quality assurance, superior performance.
2.Equipped with LED lamp, large luminous flux and long life.
3.High performance motor, automatic lifting and lowering
4.Six-section lifting pole, galvanized light pole, anti-drop, corrosion-resistant.
5.Five windproof support legs for stable support
6.Equipped with metal halide lamp, large luminous flux and long life.
7.High performance self-braking hand winch
8.Three-section lifting pole, galvanized light pole anti-drop, corrosion-resistant.
9.Five windproof support legs for stable support
10.Integrated operator panel with rain cover
11.. 9 meters lifting height, adjustable irradiation angle. long irradiation distance
12.Large capacity fuel tank, long battery life
Applications
- Construction Sites: Illuminating work areas and enhancing safety.
- Outdoor Events: Providing light for concerts, festivals, and other large gatherings.
- Emergency Situations: Offering reliable lighting during power outages or natural disasters.
- Parking Areas: Lighting up parking lots and enhancing security.
- Work Areas: Brightening up various work environments, such as warehouses or manufacturing facilities.
