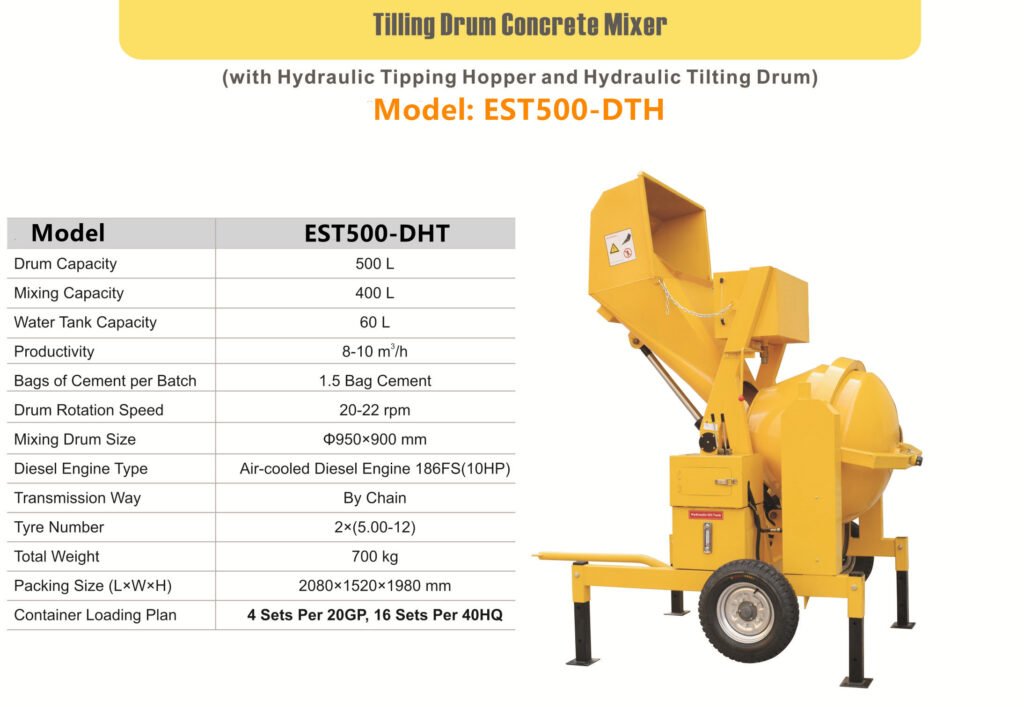

Product Parameter

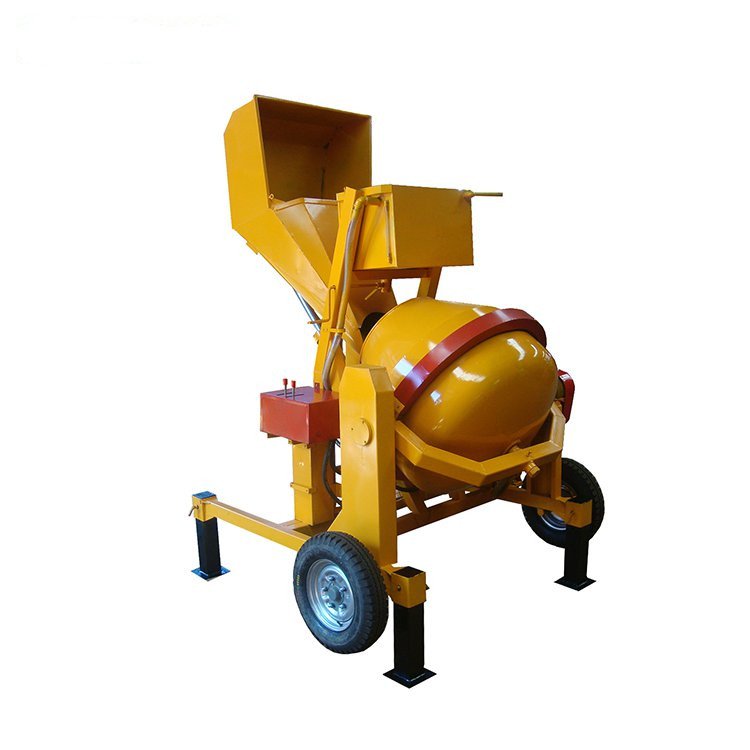

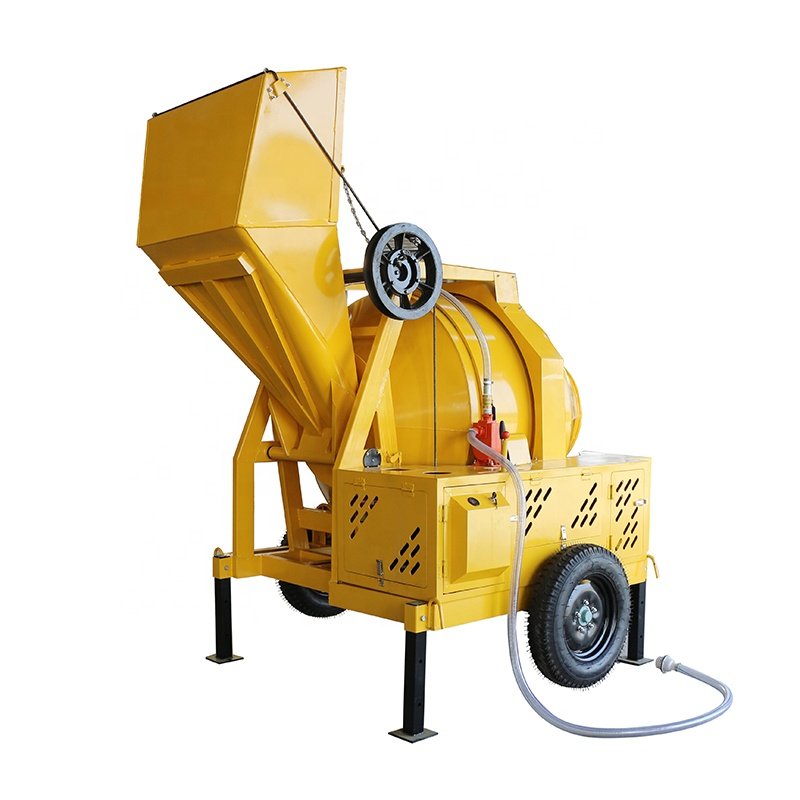

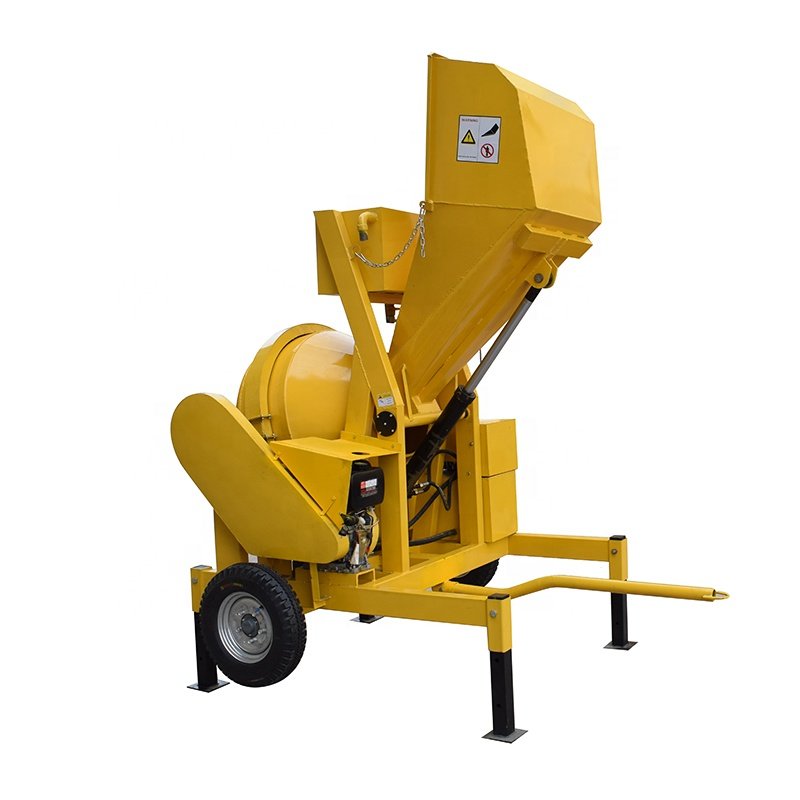

EST500–DHT Diesel Concrete Mixer with Hydraulic Loading Hopper and Hydraulic Tilting Drum is a self loading concrete mixer of Tilting drum which discharge concrete by hydraulic Control, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the Engine start.. Each time, the mixing drum can handle 0.3 cubic meters of concrete.
The mixer is designed and manufactured according to GB/T9142-2000<Concrete Mixer>, it is featured by novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, EST500–DHT Series Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
Main Features:
- Chinese top brand KAMA powerful diesel engine

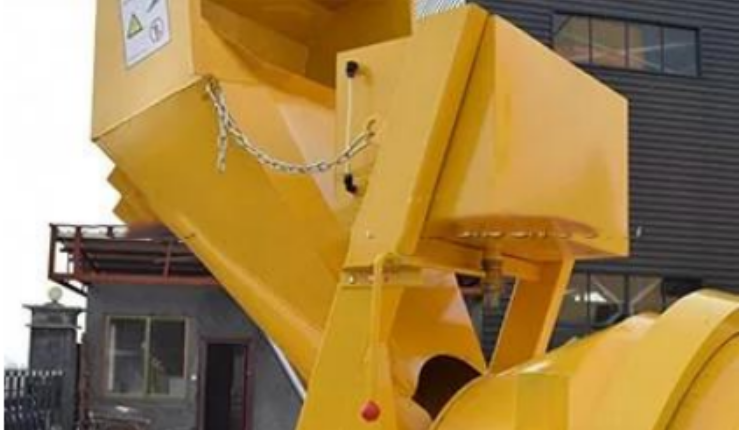

- Hydraulic loading hopper and hydraulic tilting drum
- Roubust and strong trailing rod
- Power transmission by V-Belt. Easy to adjust
- Middle situated and bolt connected design of grand gear ring
- Wear resistant plate, thickness 3mm. 5mm as option
Product Display

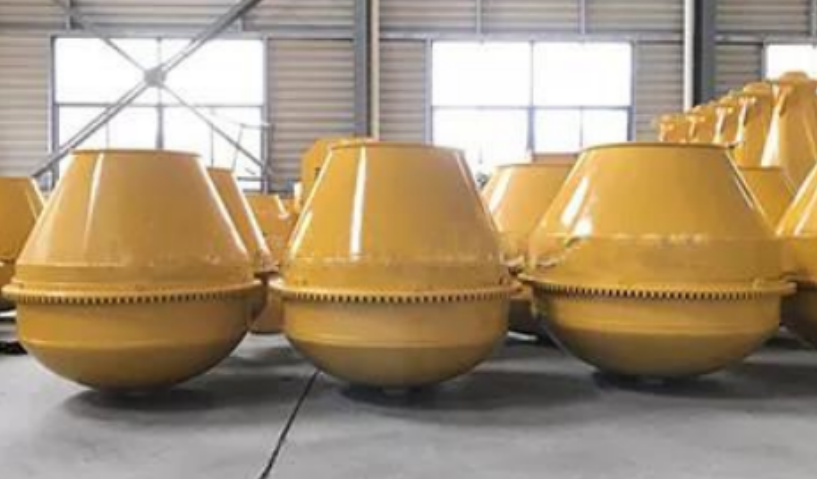

Machine PartsName: Mixing Drum Material: Q235 Wear resistant Steel Plate Details: The Drum Thickness is 3 mm, made by Q235 Wear resistant Steel Plate. 5 mm as Option. |

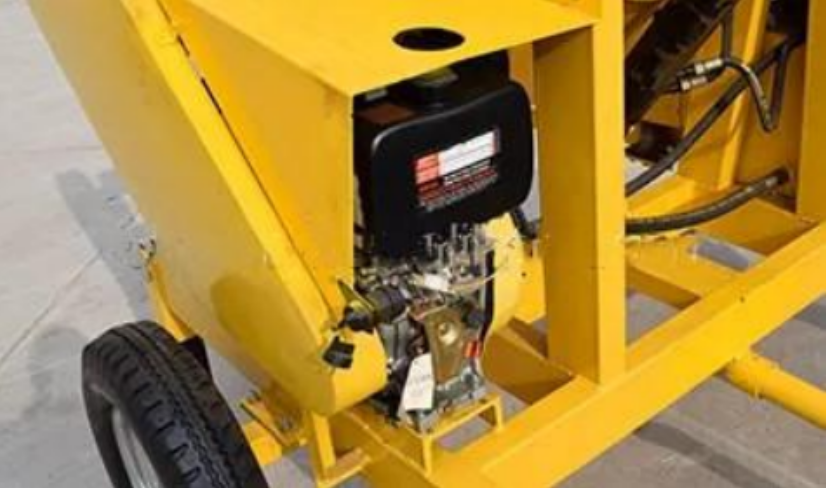

Diesel EngineName: Diesel Engine |
Chassis- mounted Big Water TankWater tank Capacity is 100L,. Machine Equiped with a water Pump,Contarol the Water supply easily. |

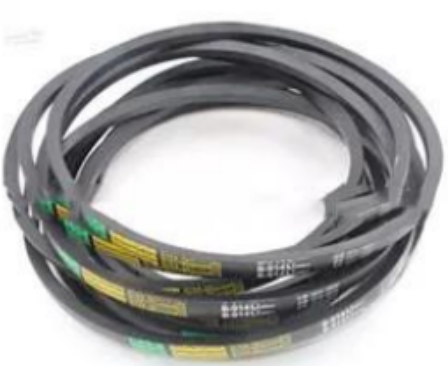

Transmission systemName: Power transmission by V-belt |
