Description
Product Parameter

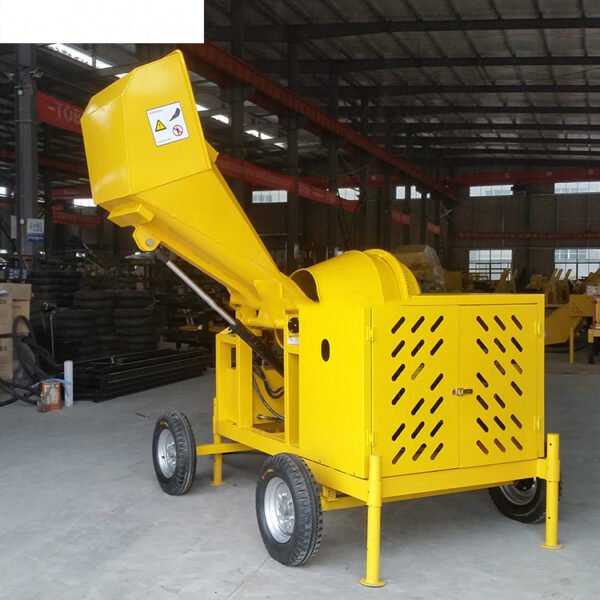

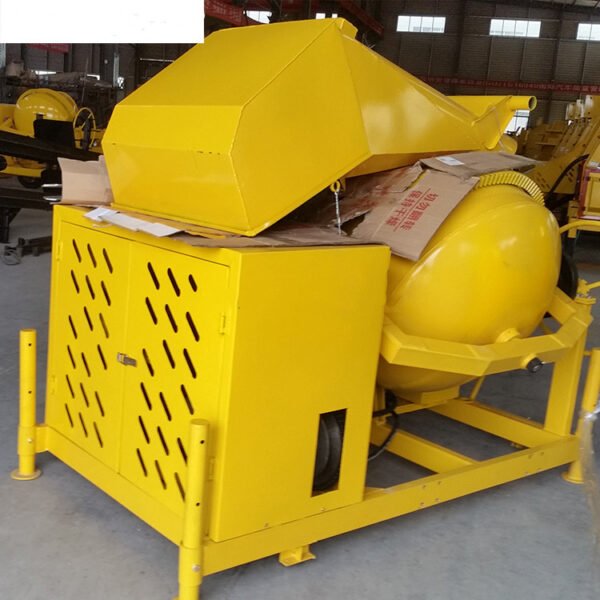

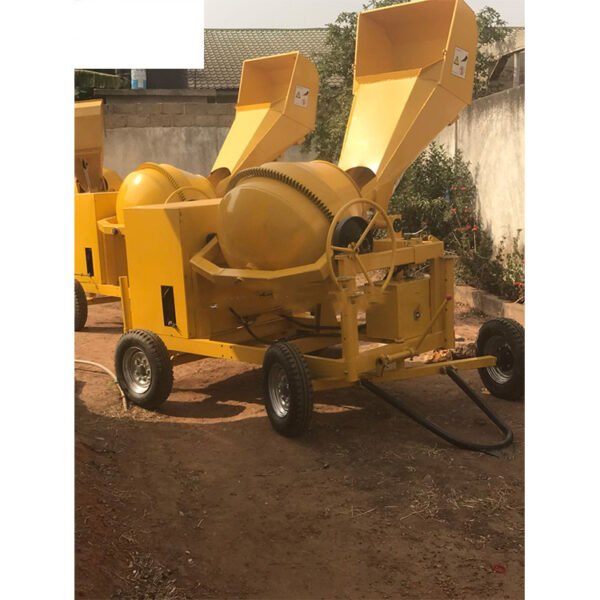

EST-500DH Diesel Concrete Mixer with Hydraulic Loading Hopper is a self loading concrete mixer of Tilting drum which discharge concrete by turn the Steering wheel , suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the Engine start.. Each time, the mixing drum can handle 0.3 cubic meters of concrete.
The mixer is designed and manufactured according to GB/T9142-2000<Concrete Mixer>, it is featured by novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, EST-500DH Series Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
Main Features:
- Chinese top brand Changchai or Changfa powerful engine as option
- Steel flexible guide wheel
- Robust and strong trailing rod
- Chain system, power transmission by chain. More powerfully, less maintenance
- Middle situated and bolt connected design of grand gear ring
- Wear resistant plate, thickness 3mm. 5mm as option.
Product Display
Machine PartsName: Mixing Drum Material: Q235 Wear resistant Steel Plate Details: The Drum Thickness is 3 mm, made by Q235 Wear resistant Steel Plate. 5 mm as Option. |
Transmission systemName: Power transmission by CHAIN. |
Protection Cover for EngineMaterial: Q235 Steel Plate,3mm
|

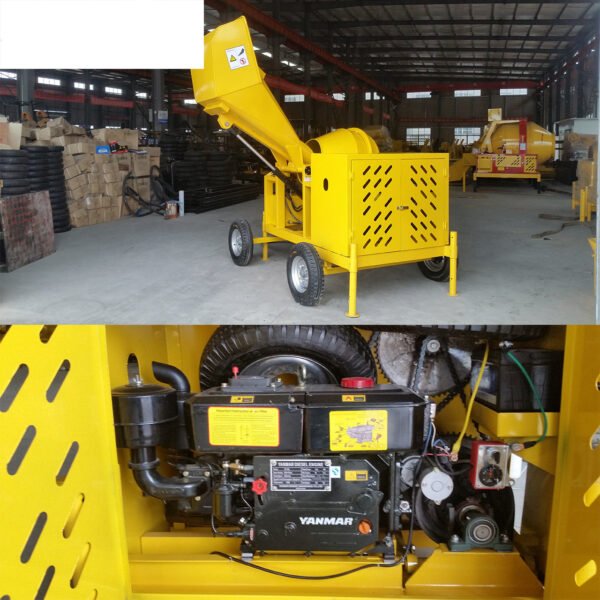

Diesel EngineName: Diesel Engine |
Chassis- mounted Big Water TankNormally type, we don’t Equip the water tank.If you need it, please kindly told us! |
