Description
Product Parameter

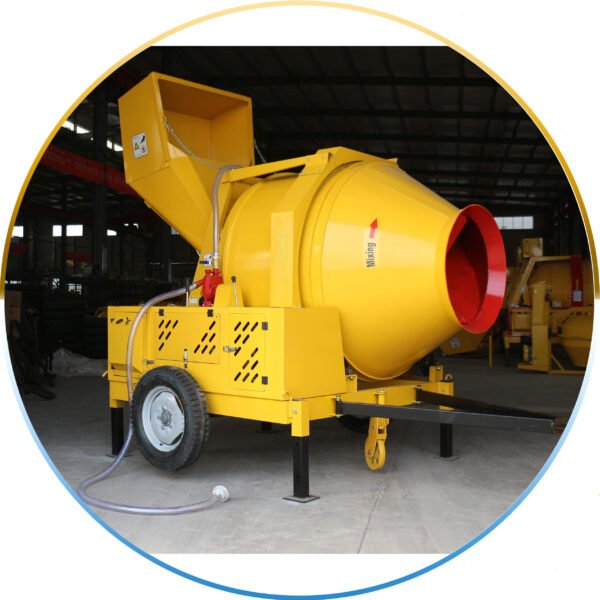

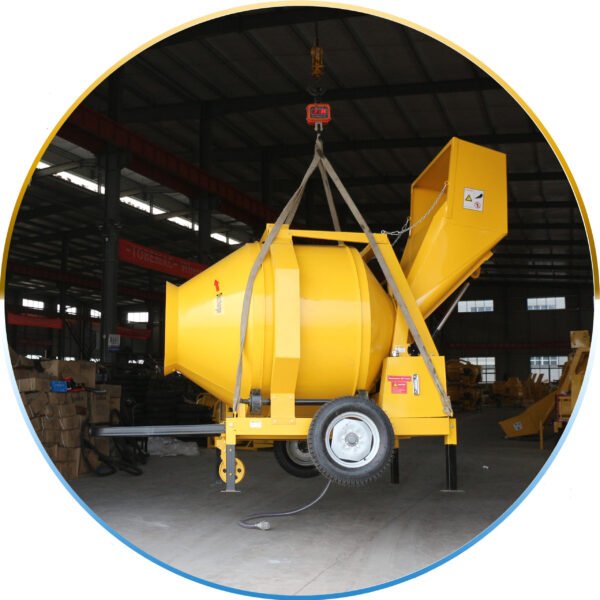

ES750-DH Self loading Concrete Mixer with Diesel Engine Power and Hydraulic Tipping Hopper is a self loading concrete mixer of double conical drums which discharge concrete by reverse-rotation, suitable for mixing plastic and semi-dry & hard concrete with the size of aggregate up to 60mm. Mixing is carried out when the mixing drum rotates in normal direction, and discharge is performed when the mixing drum rotates in reversed direction. Each time, the mixing drum can handle 0.35 cubic meters of concrete.
The mixer is designed and manufactured according to GB/T9142-2000<Concrete Mixer>, it is featured by novel construction, advanced performance, high productivity, high mixing quality, compact structure, low energy consumption, simple operation, etc. Therefore, ES750-DH Concrete Mixer is particularly suitable for circumstances like ordinary construction sites, road construction, bridge work and small-sized prefabricated-component factories etc.
Main Features of ES750-DH heavy duty concrete mixer machine
1) Chinese TOP Brand CHANGCHAI or CHANGFA Powerful Diesel Engine As Option
2) Steel Flexible Guide Wheel
3) Robust and Strong Trailing Rod

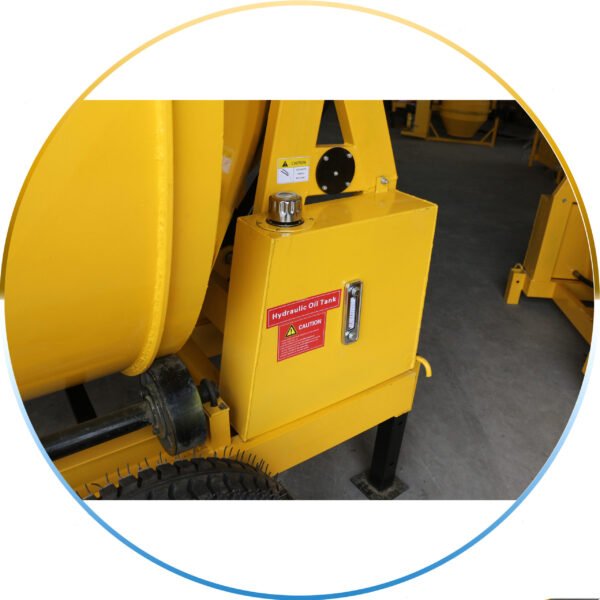

4) Big Capacity Hydraulic Oil Tank
5) Middle Situated and Bolt Connected Design of Grand Gear Ring.
6)Wear resistant plate ,thickness from 6mm to 8mm.
Product Display
Concrete Mixing DrumName: Mixing Drum Material: Q354 Wear resistant Steel Plate Details: The Drum Thickness is 6mm,made by Q354 Wear resistant Steel Plate. 8 mm as Option.
|

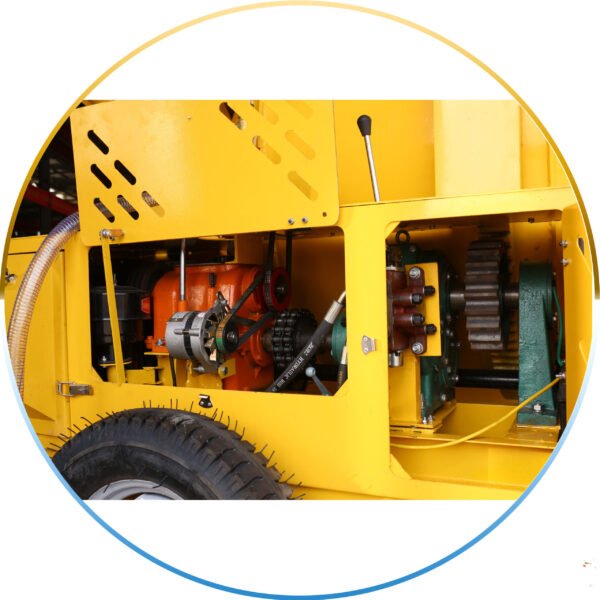

Transmission systemName: Transmission System |
Protection CoverMaterial: Q235 Steel Plate,3mm |
Diesel EngineName: Diesel Engine |
Chassis- mounted Big Water TankThe water tank is mounted on the top of chassis of Mixer. The water tank and chassis is connected by bolt, which is connevient for maintenance. The total volume of water tank is 100 Liter. |
Steel Flexible Guide WheelBesides the normal two sets of pneumatic wheel, the mixer is also equipped with extra one set of Steel Guide Wheel in front, which could make the operator control the direction of mixer easily when pulling it. |
