Description

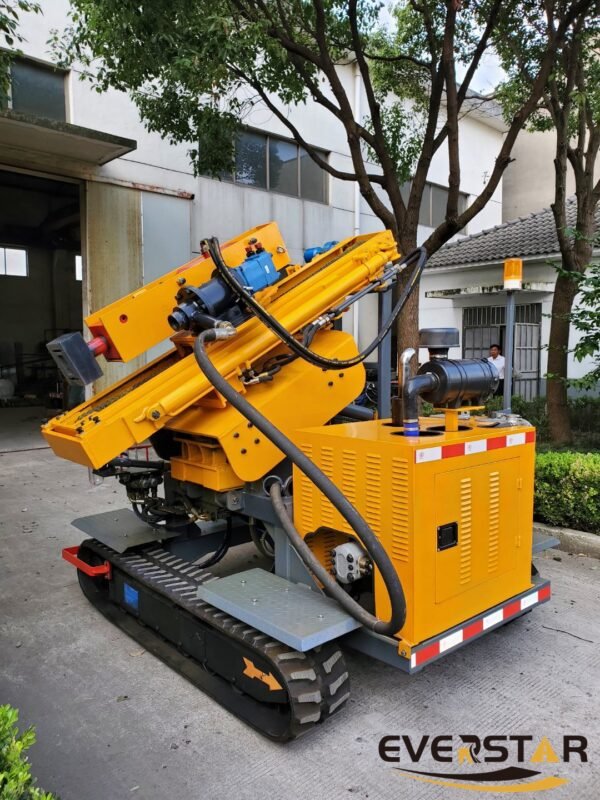

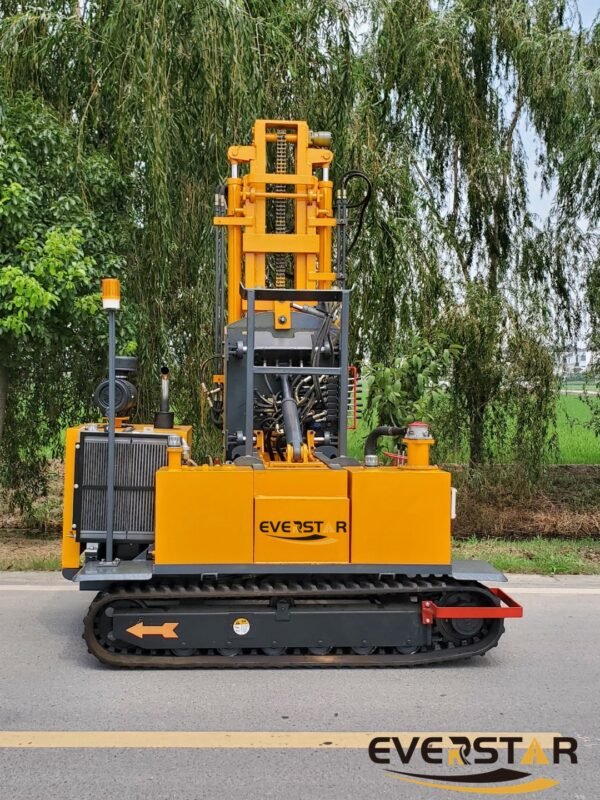

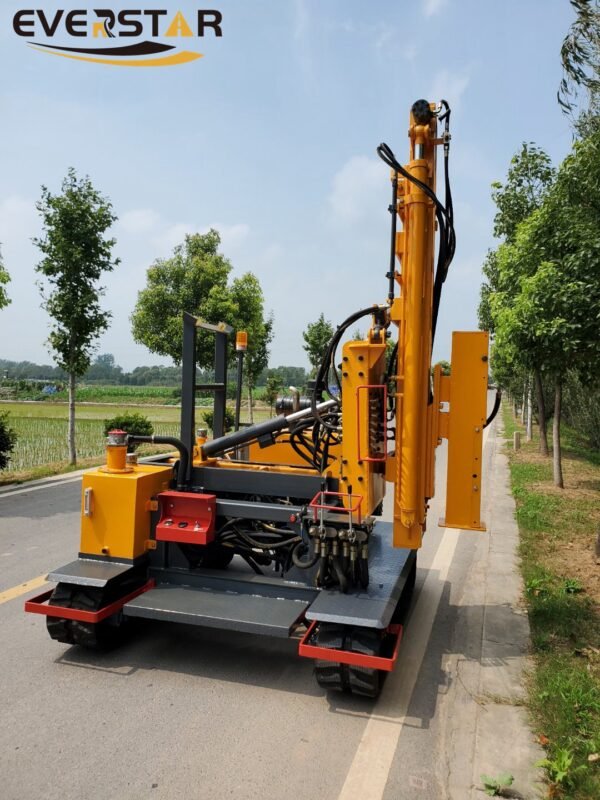

Hydraulic Photovaltic Solar Panel Post Pile Driver
The ES-E hydraulic photovaltic solar panel post pile driver is multi-functional for pile driving, pile drilling and pile extracting for post for different kinds of soil, gravel and rock grounds.
It is equipped with crawler wheel and the base chassis is 360 centigrade rotational.
The post piling height ranges from 3m to 6m as per your client requests.
There are various applicable hammer adapters like C shape, U shape, H shape, ∑ shape, photovaltic post for our pile drivers.
In order to make the pile driver performance strong enough. We equip the machine with Yanmar diesel engine which are welcomed among European and North America markets as well.
It combines two functions of piling motor head and drilling motor head onto the machine at the same time which can save labor to change one motor head to another one.
Also the remote controller function is also alternative.
This is a highly customized pile driver no matter what function you want.
Product Parameter
Model | ES-E Hydraulic Pile Driver | |||
Piling Height | 3m | 4m | 5m | 6m |
Hammer Weight | 230kgs/260kgs/330kgs | |||
Diesel Engine Brand | Famous China Brand/Imported Yanmar Brand | |||
Diesel Engine Power(HP) | 29HP/47HP | |||
Hammer Rating: | 1200-1400 joules | |||
Working Pressure | 18Mpa | 18Mpa | 18Mpa | 18Mpa |
Impact Frequency | 10-15Hz | 10-15Hz | 10-15Hz | 10-15Hz |
Working Flow | 36-65L/min | 36-65L/min | 36-65L/min | 36-65L/min |
Oil Tank | 100L | 100L | 100L | 100L |
Size(L*W*H) | 3200*2200*3800mm | 3200*2200*3800mm | 3200*2200*3800mm | 3200*2200*3800mm |
Weight | 2800kgs | 2800kgs | 2800kgs | 2800kgs |
Optional Configurations | Diesel Engine Brand/Remote Controller/Piling and Drilling Accessory Combination/Extracting Function | |||
Features
- Piling and drilling motors are mounted on machine at the same time, can save time and labor to change the pilling and drilling accessories to each other.
- Multi-funtional uses for highway guardrail and solar panel post piling, pulling piles, drilling.
- It can rotate in 360°during working process.
- It can equipped with remote controller for working conveniently.
- The drilling head have anti-dust cover to reduce dust during working process.
- The diesel engine brand and power are optional as per piling height requirement.
- The frame structure of the pile driver is excellent, the material strength is good, and the stability is high.
Product Display
Electric Starting, Intelligent Fault Warning Ligh
Customized Remote Controller, Easy to Operate Forward, Turn a Corner and Backw
Reinforced Guard Rail, LED Warning Light

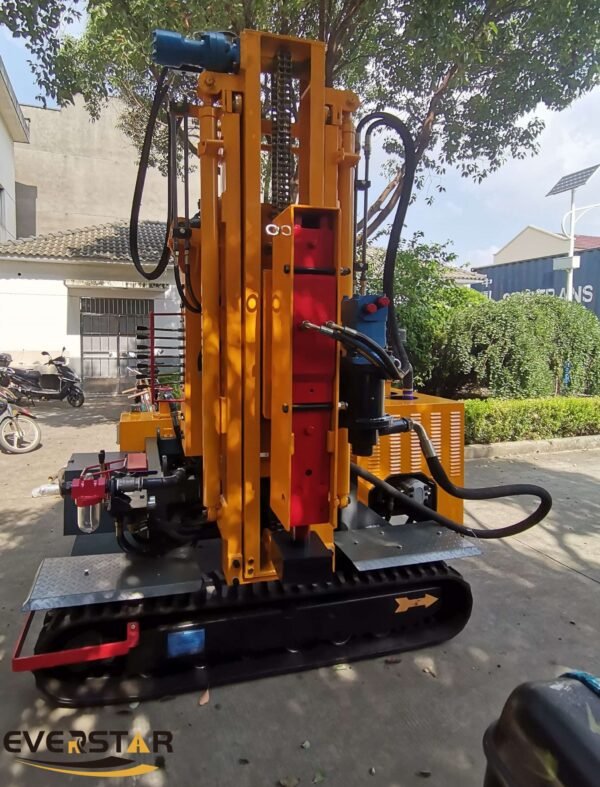

Piling Hammer and Drilling Motor are Mounted on Machine at the Same Time
Diesel Engine Radiator No need to add water, add anti-freeze freely, better cooling effect
Drilling Head have Anti-Dust Cover to Reduce Dust During Working Proc
Working Photos
Suitable Types Posts
