Description

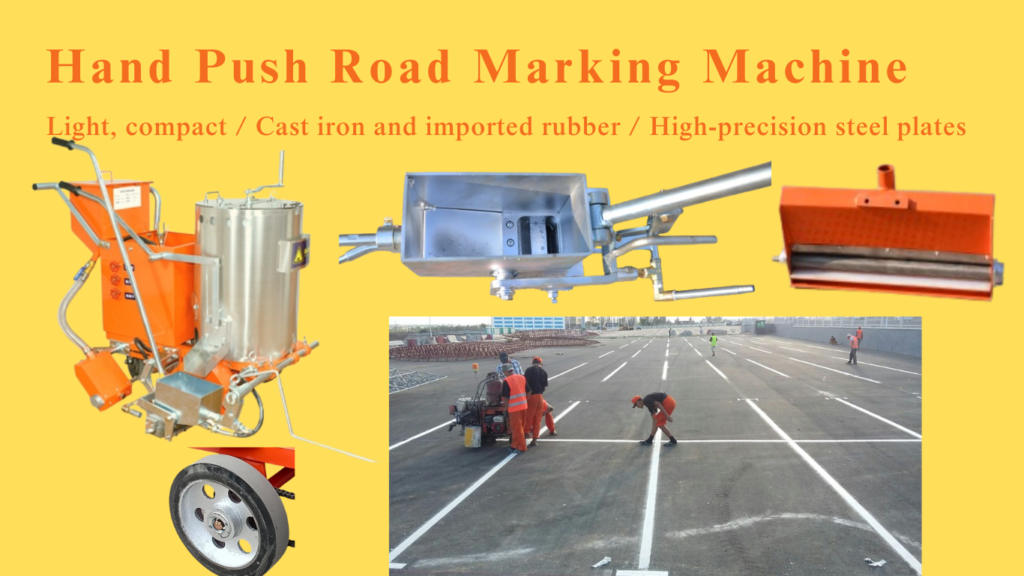

ES-1A Line striper more details
The ES-1A line marking machine is also called road marking machine, thermoplastic line striping machine, thermoplastic marking applicator, screeding marking machine, traffic cline striper etc. It can not only mark single white and yellow lines, but also can mark double yellow lines in the road middle place.
Technical Parameter
Model | ES1 |
Dimension | 1320*850*1000mm |
Machine Weight | 135kgs |
Paint Tank Capacity | 100kgs |
Marking Width | 50mm, 80mm, 100mm, 120mm, 150mm, 200mm, 300mm, 400mm, 450mm, 500mm |
Marking Thickness | 1.0-3.0mm |
Marking Speed | 1.5km/h |
Heating Temperature | 180-210°C |
Heating Method | Liquefied Gas |
Applicable Liquefied Gas Tank | 15kg |

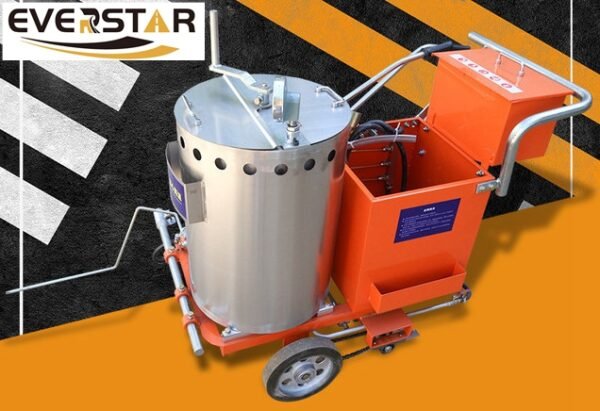

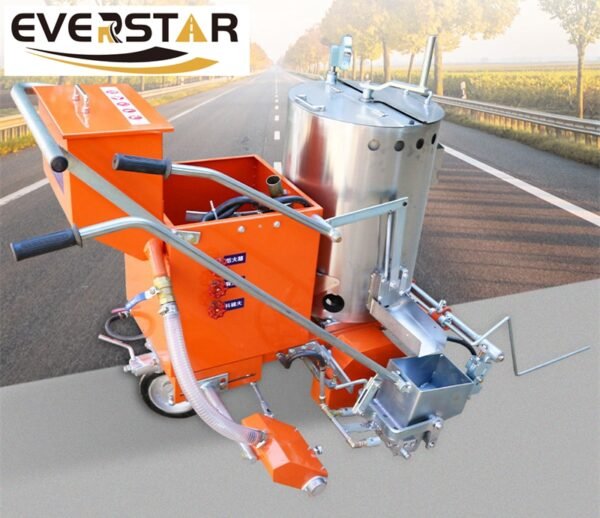

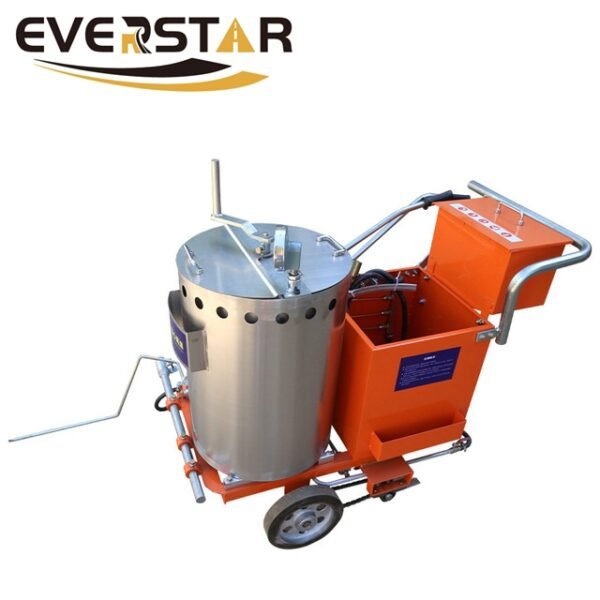

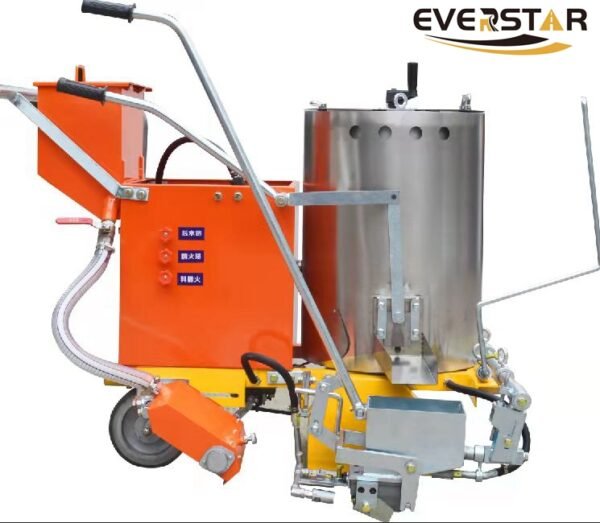

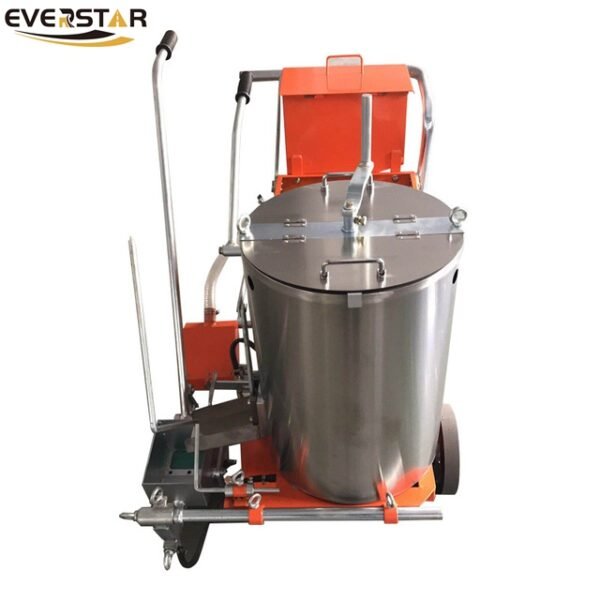

Product Display
Ignition Valve
Clockwise the fire becomes smaller, Anti-clockwise the fire increases
Hopper Cover
Hopper cover and stirring handle can keep warm the paints and stirring the paints evenly
Hopper Cover
Thermo Paints Filter: Can help to filter impurities when pouring the well heated thermo paints from preheater machine
Alternative Sizes Marking Die Shoe:
Control marking line width, different sizes 50-500mm can be supplied
Swivel Wheel
High-quality rubber swivel wheel, flexible for steering, can assure the straight line
Landing Knife
Carbide material, equipped with eccentric sleeve, can adjust the marking line thickness
Road Marking Project Photos
Application Photos
Stock Photos
