Description
Definition
Automatic driving type thermoplastic screeding flat line, convex line road marking machine, driving-type thermoplastic screeding road marking machine is suitable for marking highway, urban road and local road with large construction square. Type I: pneumatic screeding flat line marking shoe. Type II: pneumatic screeding flat or convex line marking shoe.
Specification
Driving type thermoplastic flat line road marking machine | |
Engine | 35 KW diesel engine |
Air compressor | 0.6 m3/min |
Heating Mode | Liquefied petroleum gas, infrared burner, automatic temperature control |
Paint tank capacity | 250 L pressure tank |
Glass beads bin | 120 L |

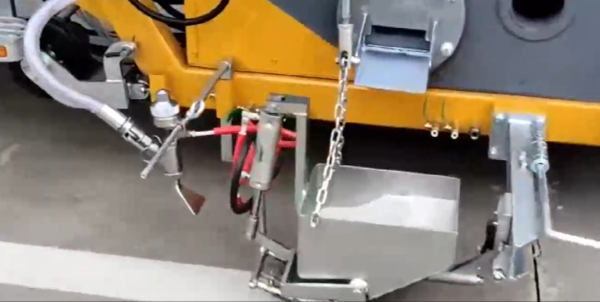

Marking equipment | Pneumatic flat line marking shoe |
Standard configuration | 150 mm |
Marking width
| 100 mm, 200 mm, 250 mm, 300 mm (optional) |
Marking thickness | 1.8 mm – 3.5 mm (adjustable) |
Control system | Digital intelligent control system |
Dimensions (L*W*H) | 4100 mm × 1900 mm × 2100 mm |
Weight | 2260 kg |
Optional system | Guide warning screen, pre-marking system, and trailer |
Driving type thermoplastic convex line road marking machine | |
Engine | 35 KW diesel engine |
Air compressor | 0.6 m3/min |
Heating Mode | Liquefied petroleum gas, infrared burner, automatic temperature control |
Paint tank capacity | 250 L pressure tank |
Glass beads bin | 120 L |
Marking equipment | Pneumatic flat or convex line marking shoe |
Standard configuration | 150 mm |
Marking width
| 100 mm, 200 mm, 250 mm, 300 mm (optional) |
Marking thickness | Bottom line 1.0 mm – 2.5 mm (adjustable) Convex height 3 mm – 7 mm (adjustable) |
Control system | Digital intelligent control system |
Dimensions (L*W*H) | 4100 mm × 1900 mm × 2100 mm |
Weight | 2260 kg |
Optional system | Guide warning screen, pre-marking system, and trailer |
Features
- Advanced hydraulic drive with infinitely variable speed control system, control and adjust speed more accurately.
- Drive optimization design can control the machine more efficiently and safe in case of emergency.
- Larger capacity pressurized paint tank and glass bead bin, keep the continuity of long-distance marking job.
- Conduction oil and internal vertical hydraulic agitator ensures efficiently and evenly heating.
- Screeding structure makes the markings more straight and beautiful.
- Infrared furnace, save fuels more than 50%, 3 times thermal efficiency than normal furnace.
- Sensitive, precise and stable computer control system, easier realizes all operations.
- All directions warning system, ensures more safe during construction.
